Electronics Projects


Below are some of the electronics projects we have done in the past:




Electronic Dump Load Controller for a Hydro Electric Turbine (ELC)

  • System was designed to regulate the turbine frequency (rotation speed) to 50 to 60Hz.
  • It used a series of dump loads (heater elements and light bulbs) to dump the excess energy in order for the turbine to not spin to fast or to slow.
  • The system also included safety and lockout relays to protect the turbine and load the turbine was designed to power.




AC fail and low battery alarm and status indicator for 12vDC gate system for A-Media

  • Unit was designed to prevent the systems backup battery from going flat.
  • Unit can be used on house hold alarm systems / drive way gates / garage doors / and almost any other system that uses a backup battery.
  • Sounds alarm and flashes status light to indicate that AC has failed and the system is now running on the battery backup.
  • Sounds alarm and flashes status light to indicate that the backup battery is running low.
  • System has reset button to silence buzzer.

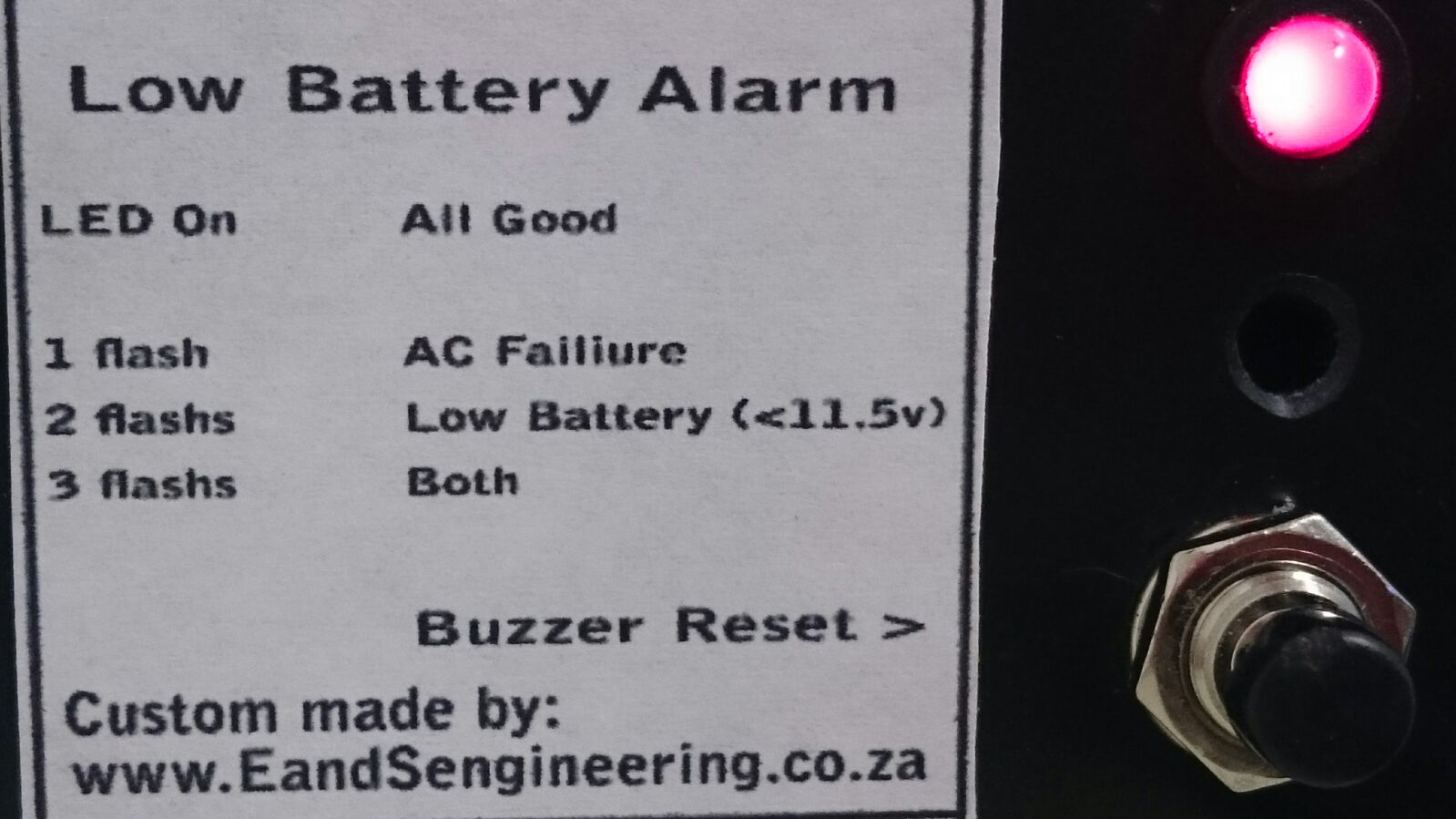

IMG-20151012-WA0000

Technologies and skills used: Micro-controllers, LED’s, Buzzers, opto-isolators, ADCs, veroboard etc

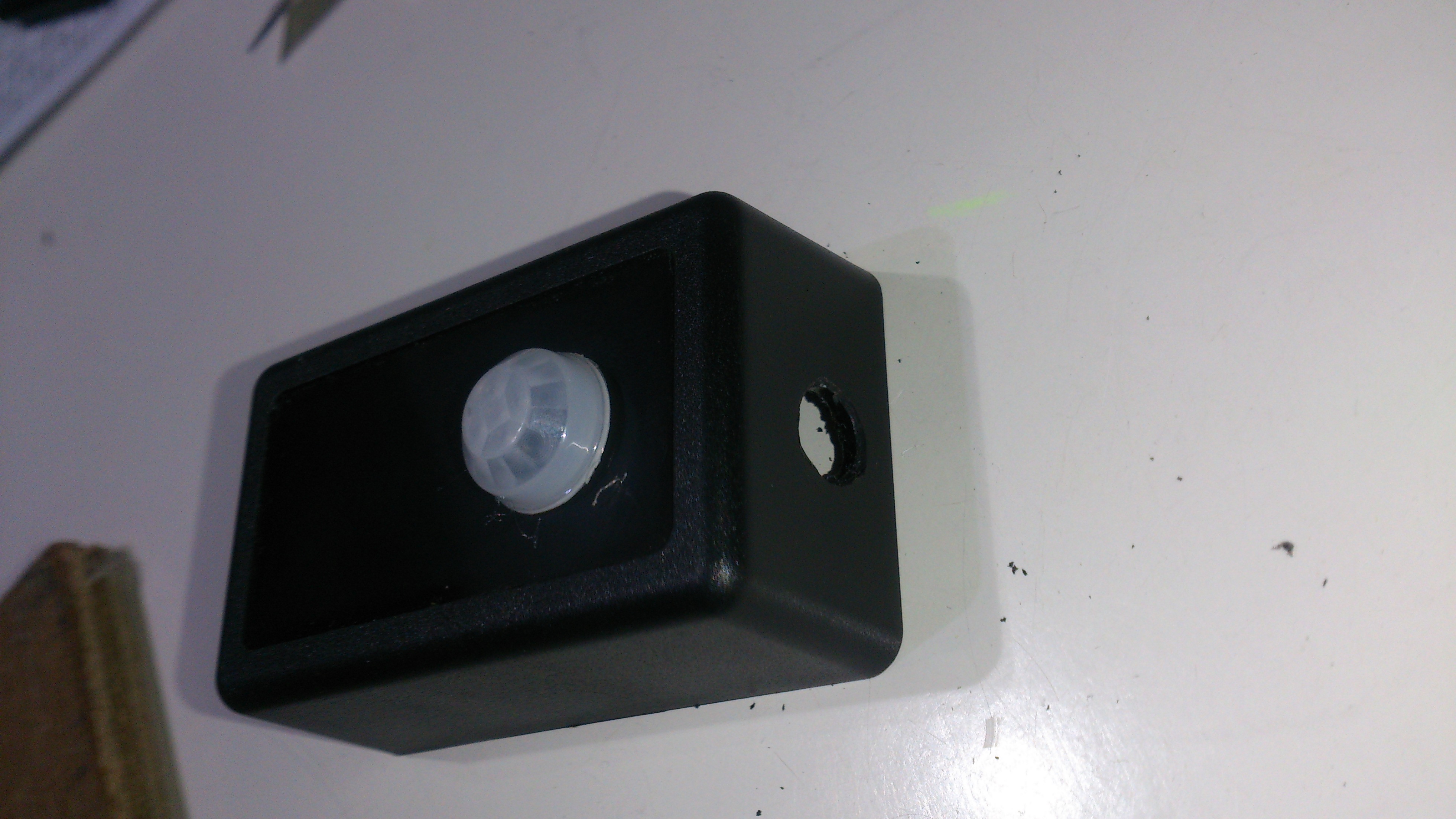

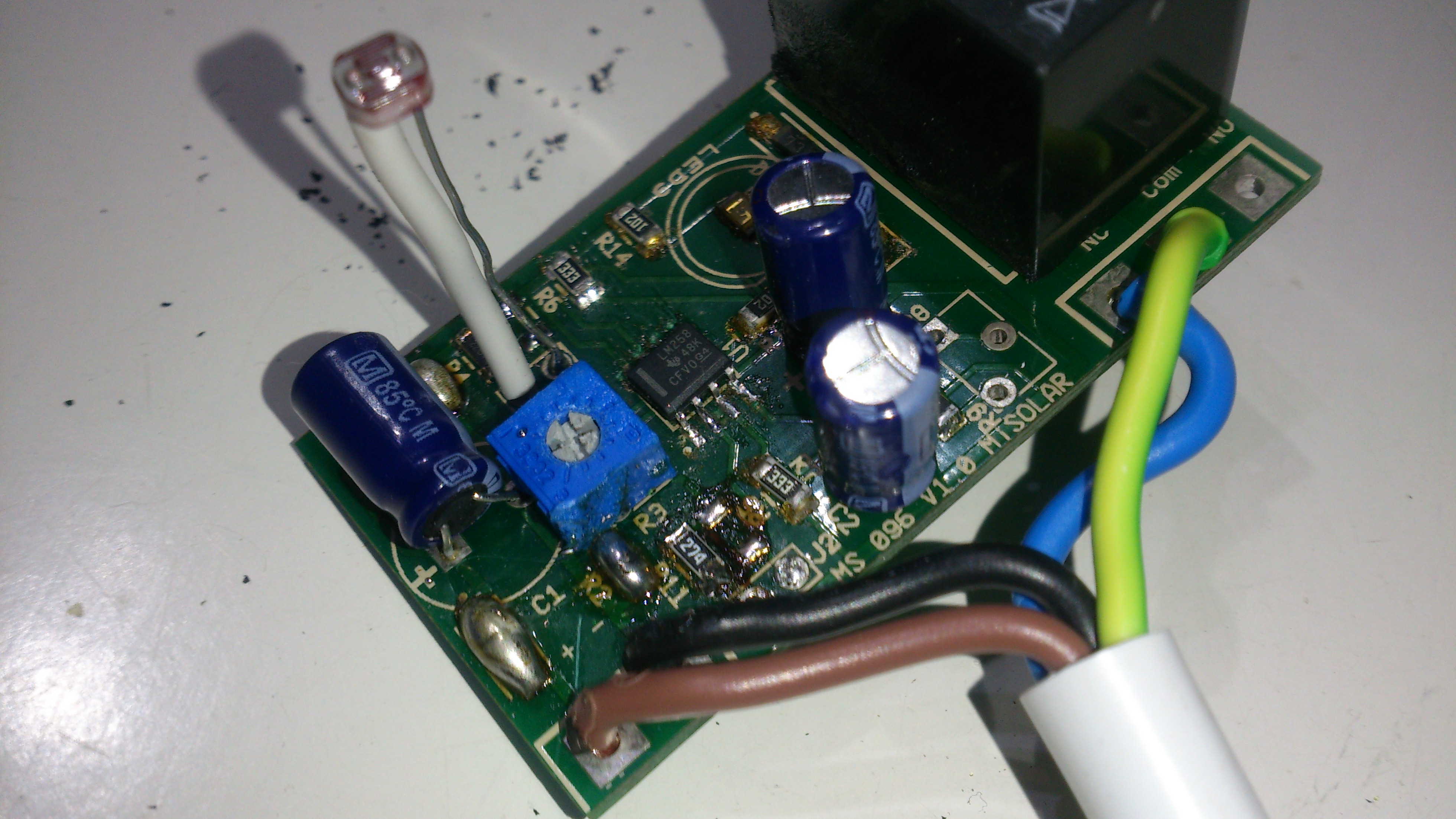

Development & prototyping of 12vDC Day/Night switch with MiSolar

  • Runs on 12vDC power unlike regular off the shelf AC units so can be battery / solar powered
  • Adjustable on off ambient light level as well as on off delay time

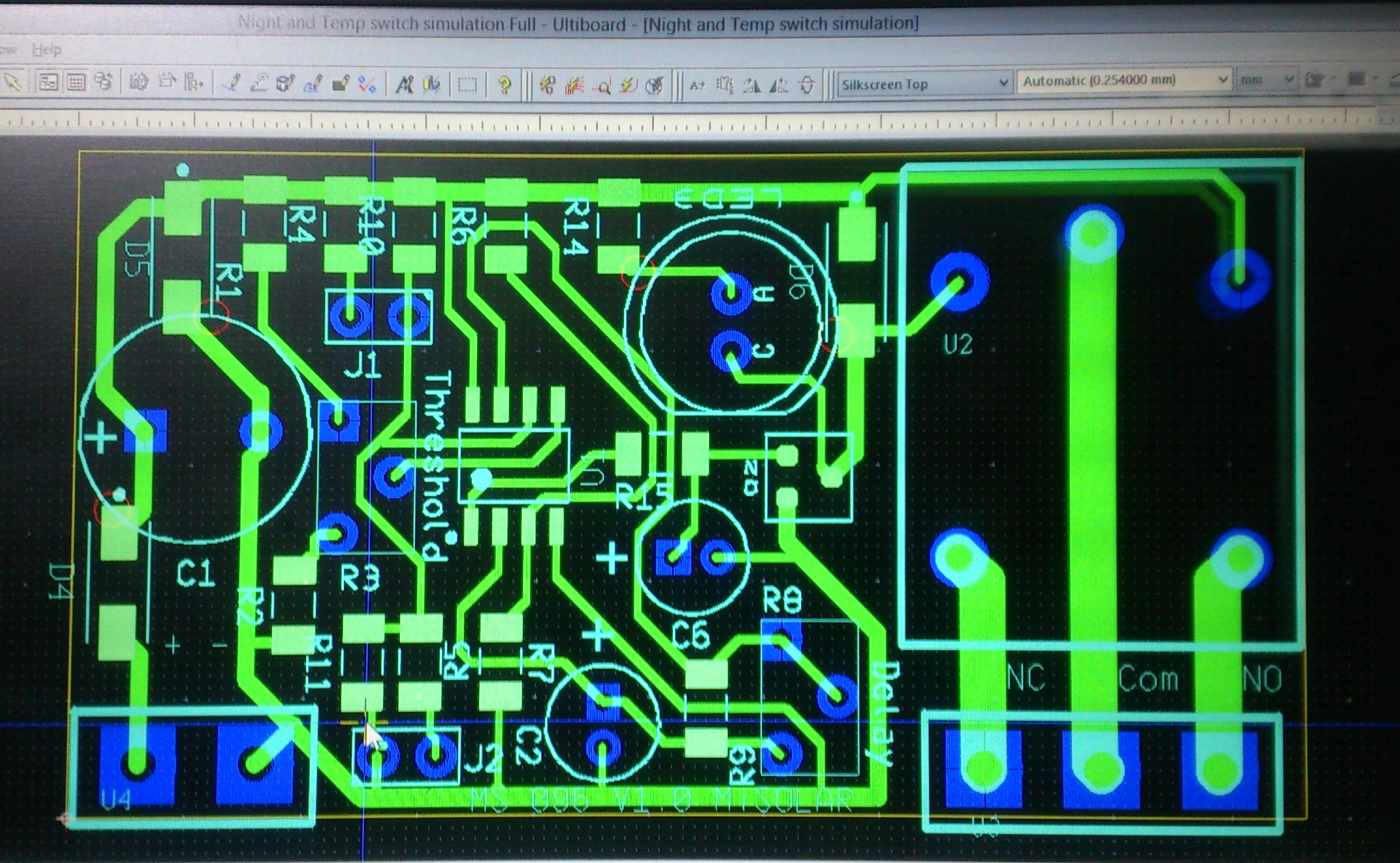

world gaia - 12v day night & temp switch_4 DSC_1584 DSC_1581

Technologies and skills used: OPAmps, Relays, LDR’s, SMD technology, PCB Layout software etc




Development & prototyping of 12vDC Temperature switch with MiSolar

  • Runs on 12vDC power so can be battery / solar powered
  • Adjustable on off temperature threshold as well as on off delay time

world gaia - 12v day night & temp switch_4 DSC_1584

Technologies and skills used: OPAmps, Relays, NTC’s, SMD technology, PCB Layout software etc

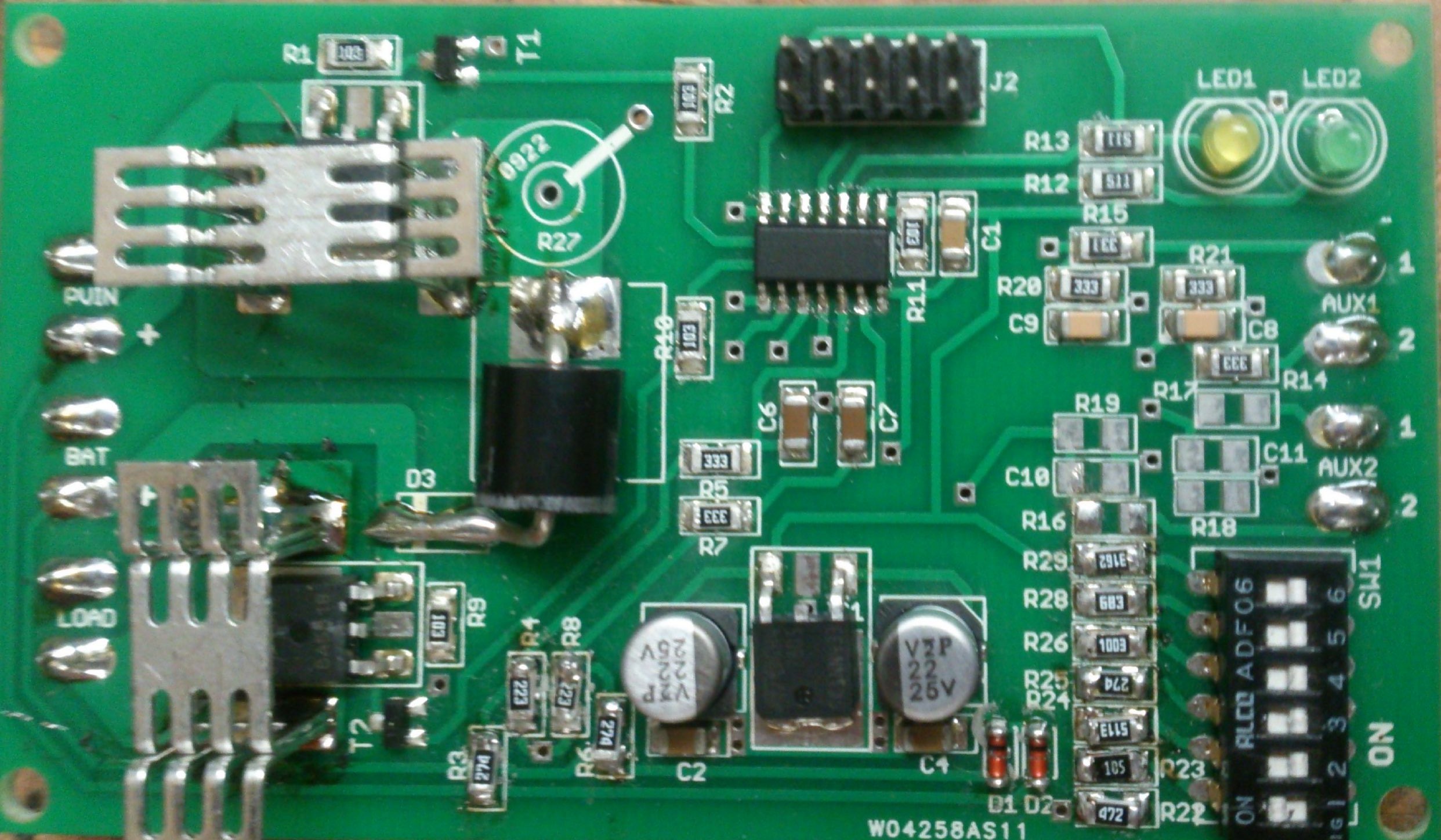

Development and prototyping of 12vDC solar charger and light controller (MiBox) with MiSolar

  • Runs on 12v lead acid battery and solar panel.
  • Uses 4 Stage micro controller based charge method – Boost / High absorption / Low absorption and float stages.
  • Turns LED light (output) on at sunset.
  • Turns LED light (output) off after user defined time has lapsed – set using dip switches.
  • Turns LED light (output) off if the battery reaches low levels.
  • Turns LED light (output) off at sunrise.
  • Unit uses 2 status LEDs to display battery voltage and charge stage.

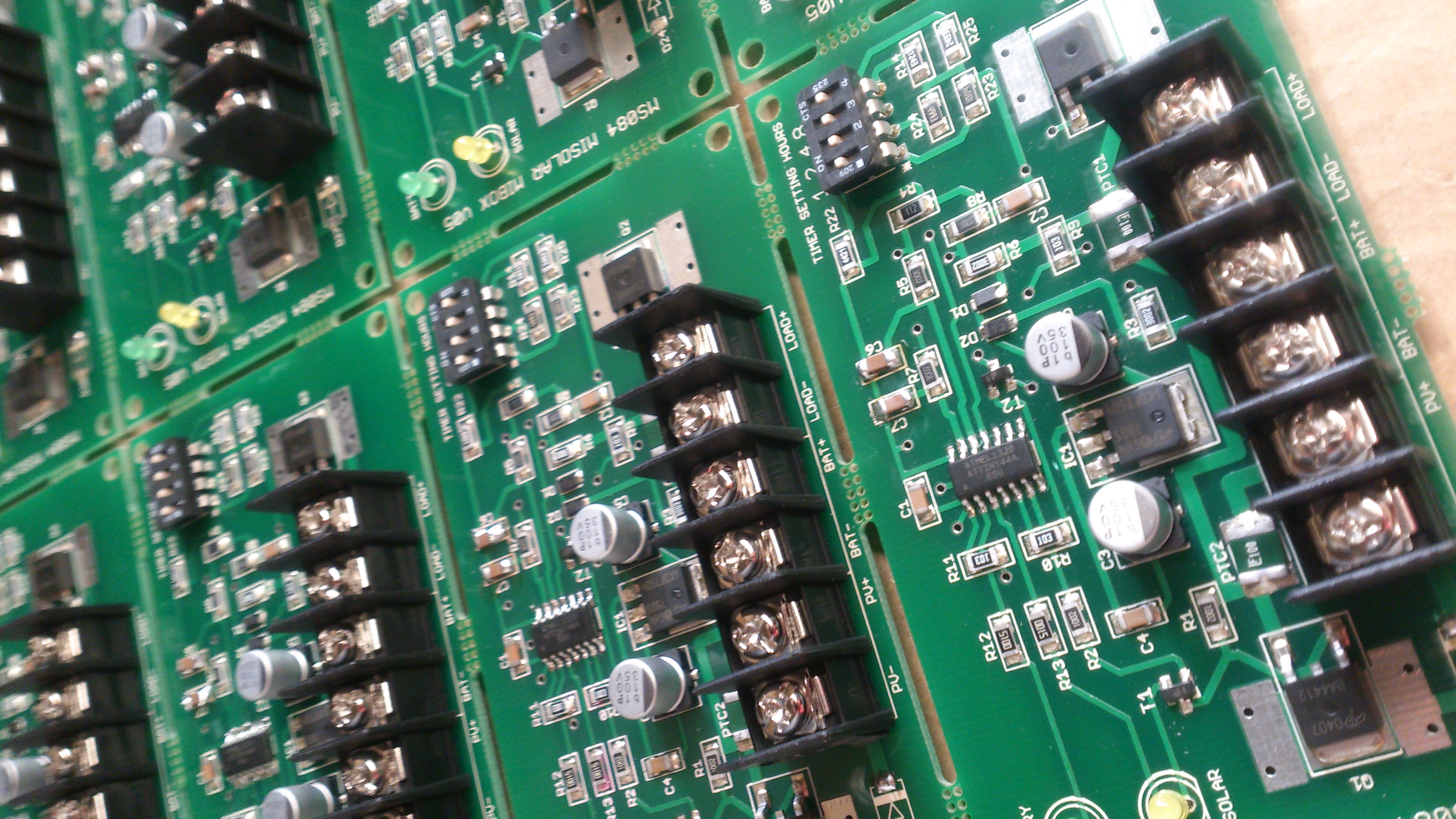

DSC_1729

Technologies and skills used: Micro-controllers, FETs, SMD technology, PCB Layout software etc

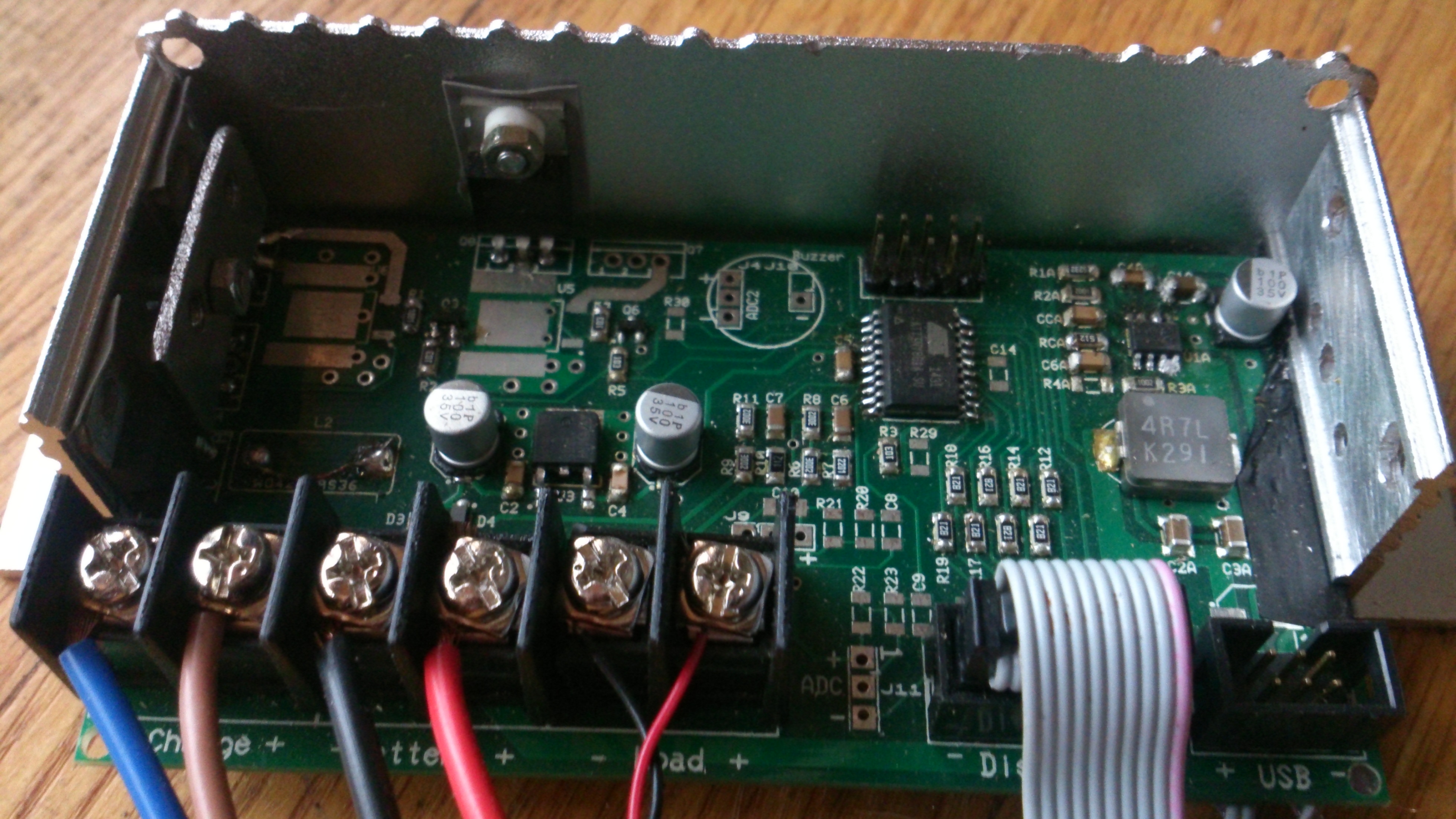

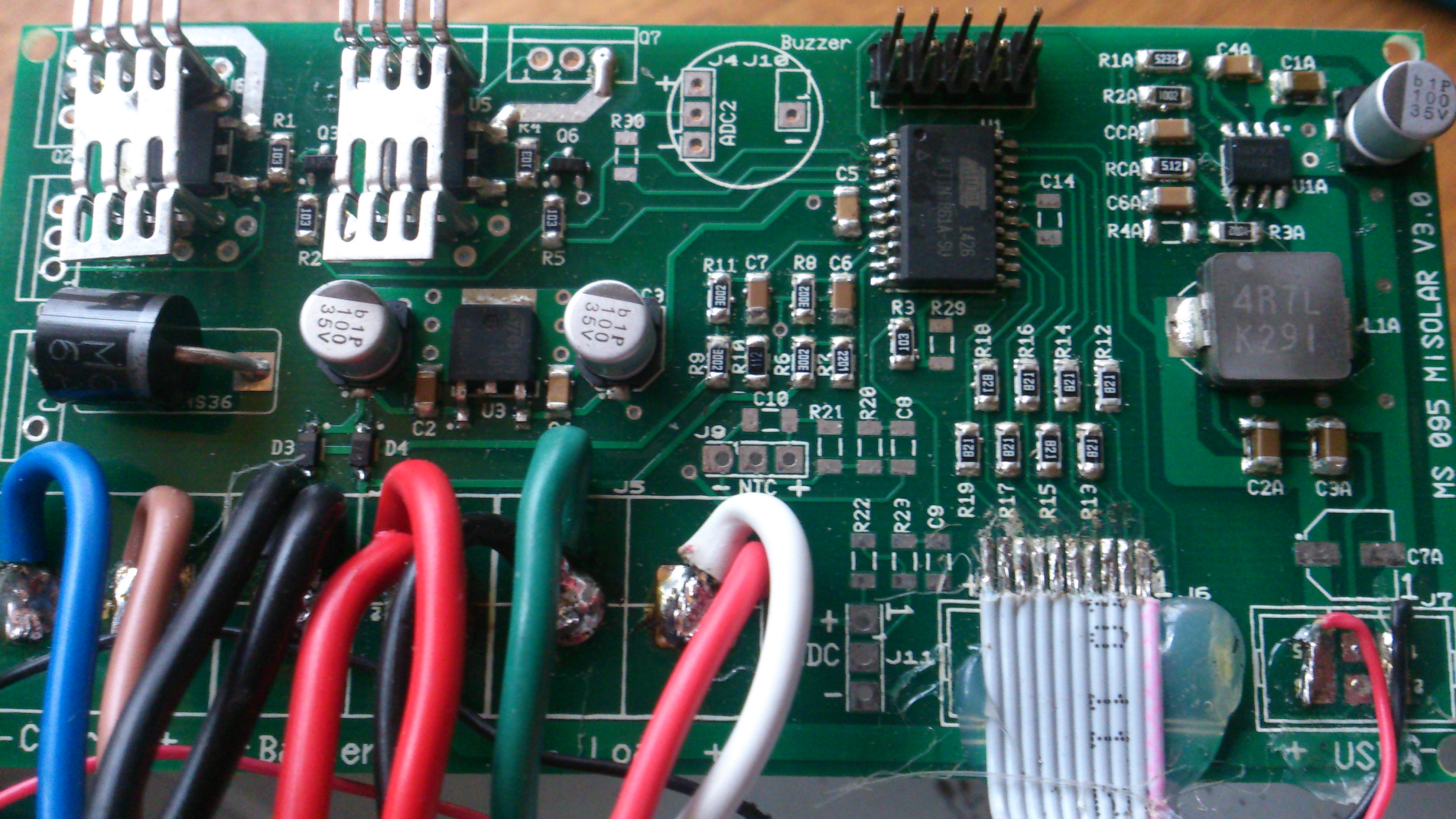

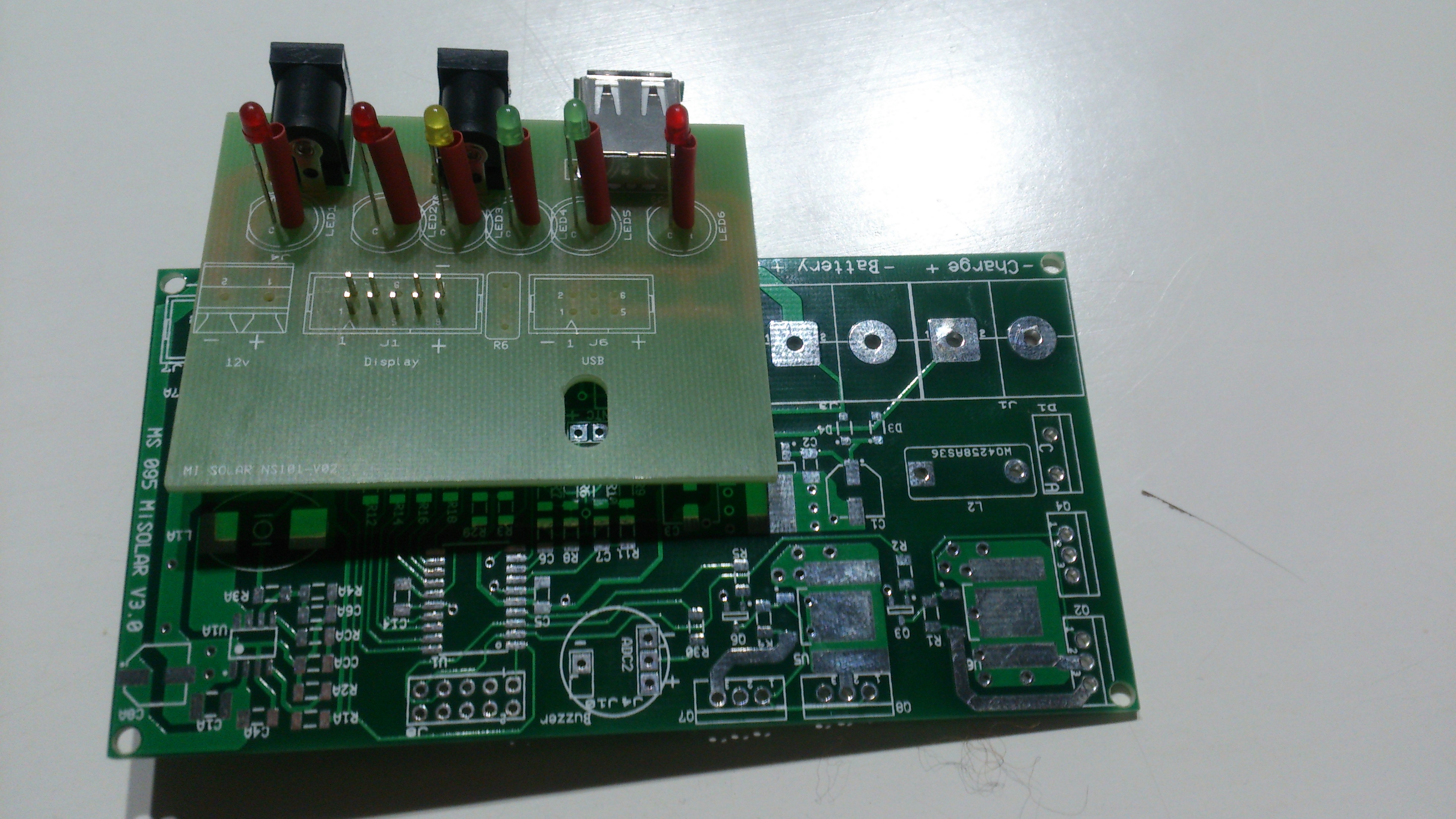

Development and prototyping of 12vDC mini battery system (MiHome) with MiSolar

  • Runs on 12v lead acid battery and solar panel.
  • Uses 4 Stage micro controller based charge method – Boost / High absorption / Low absorption and float stages.
  • Has 6 segment LED bar to indicate battery level and charge stage.
  • Includes 5vDC USB output circuitry for charging mobile phones etc.
  • Uses low voltage protection to disable outputs in battery low status.

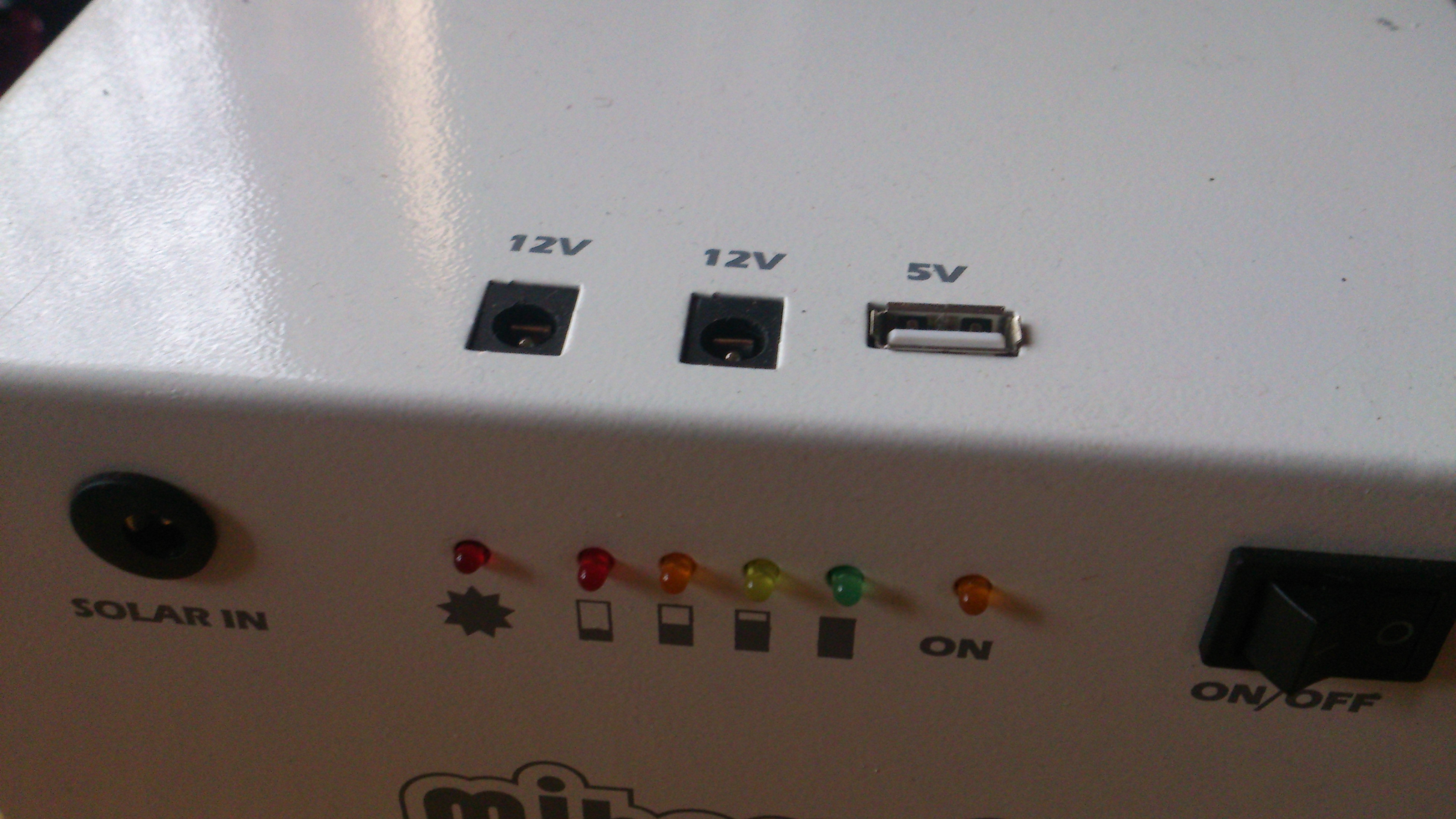

DSC_1847 DSC_2047 (1)   DSC_2050 DSC_2051

Technologies and skills used: Micro-controllers, FETs, Inductors, Buck IC’s, SMD technology, PCB Layout software etc

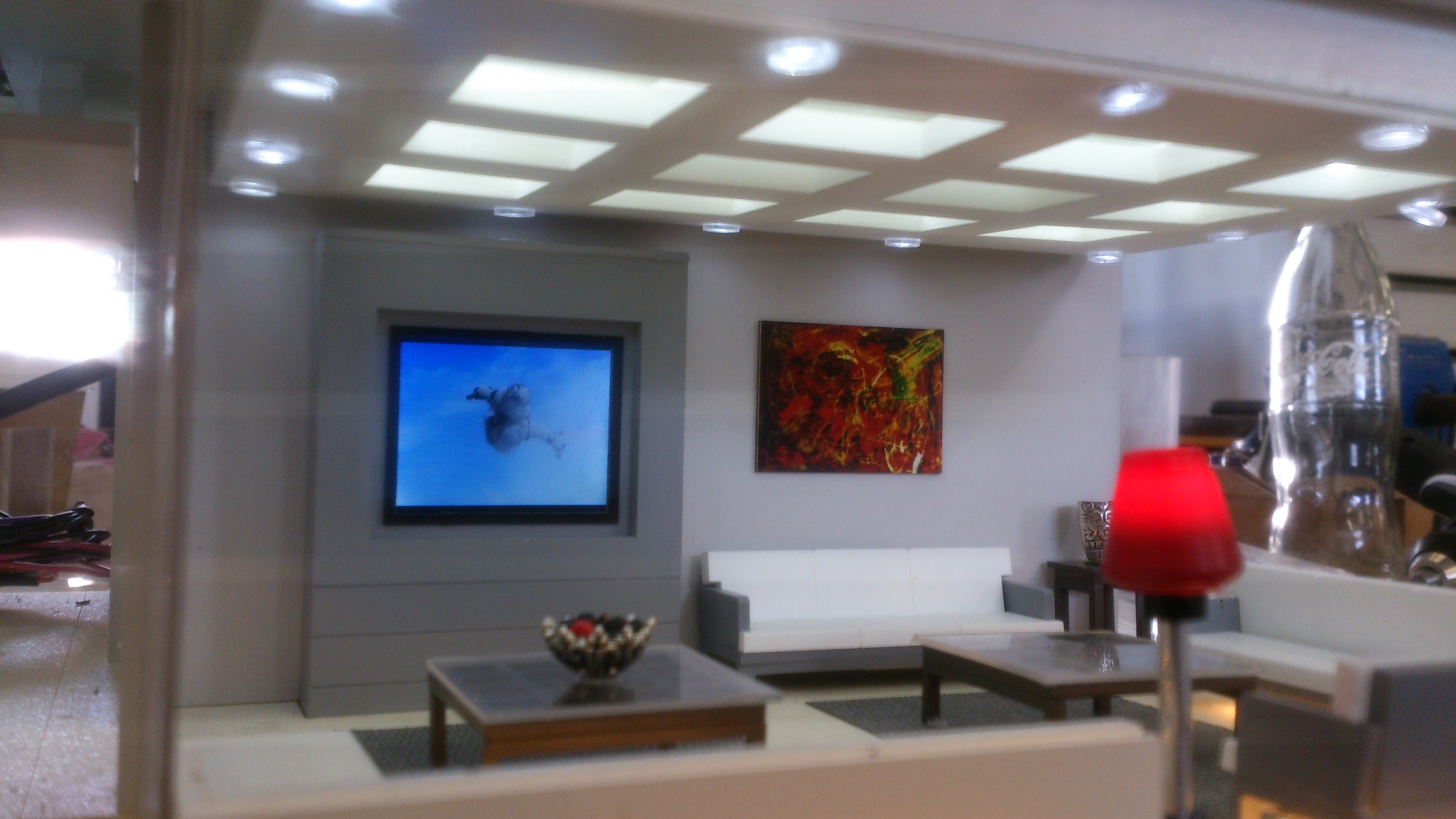

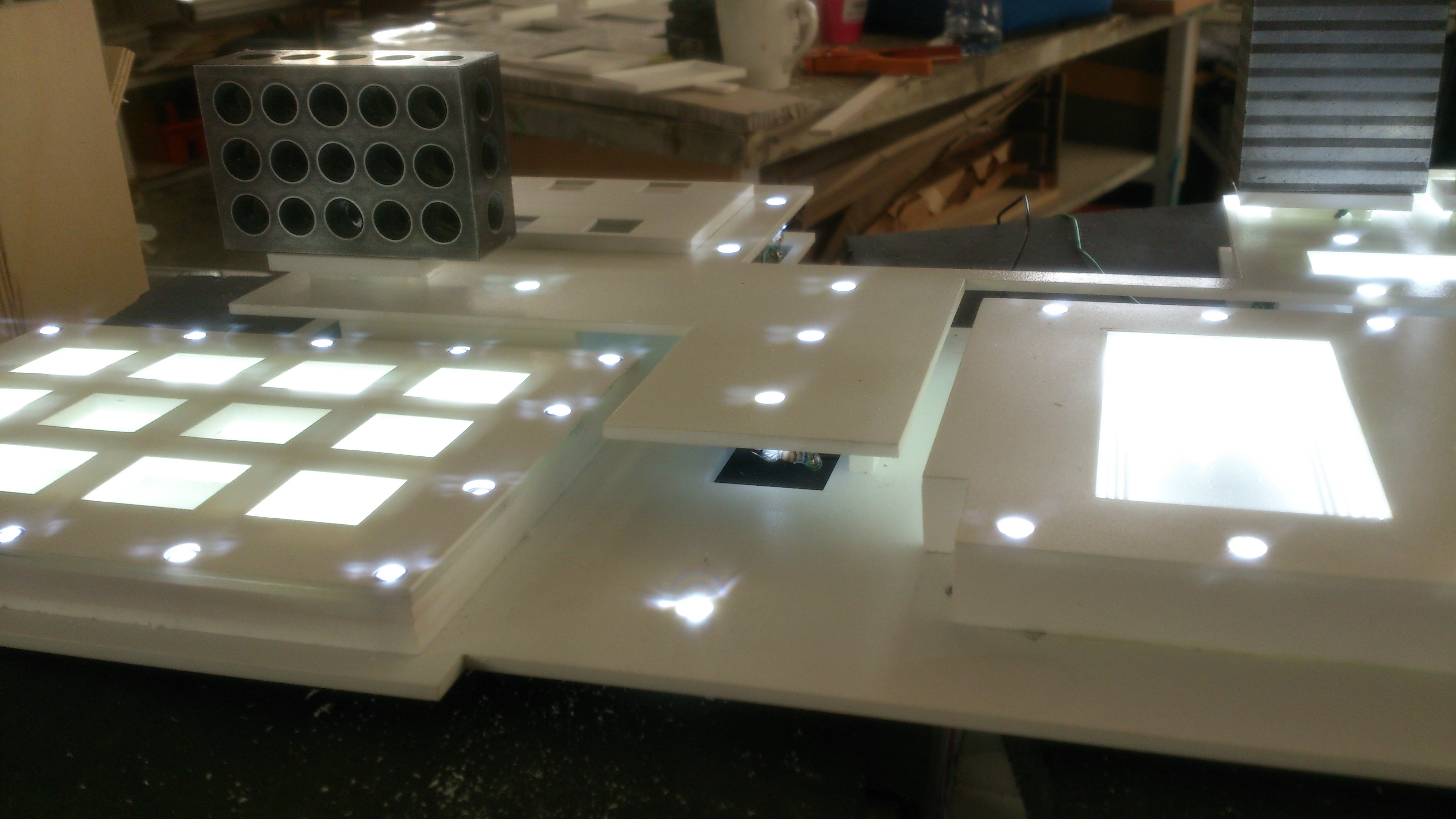

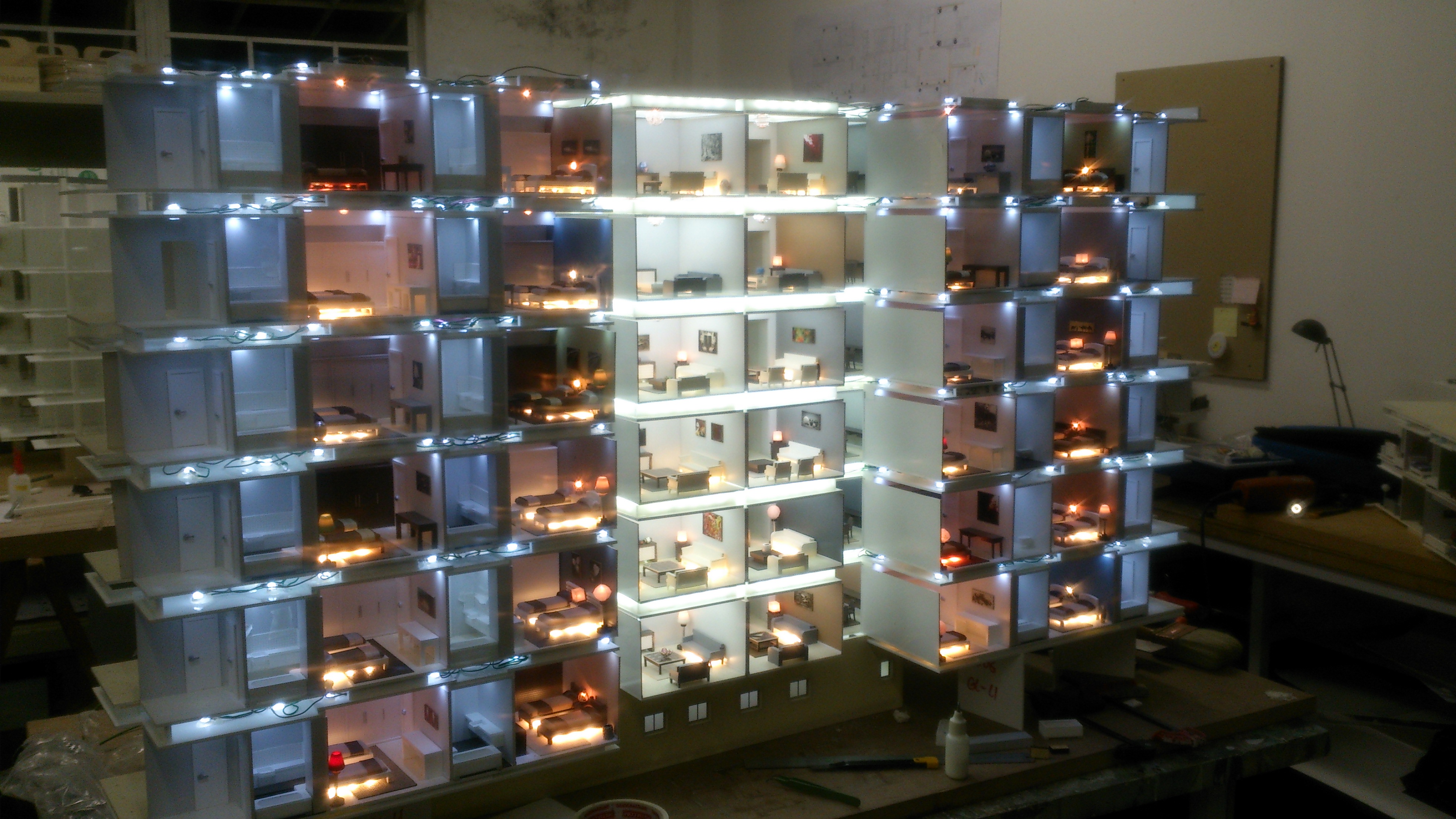

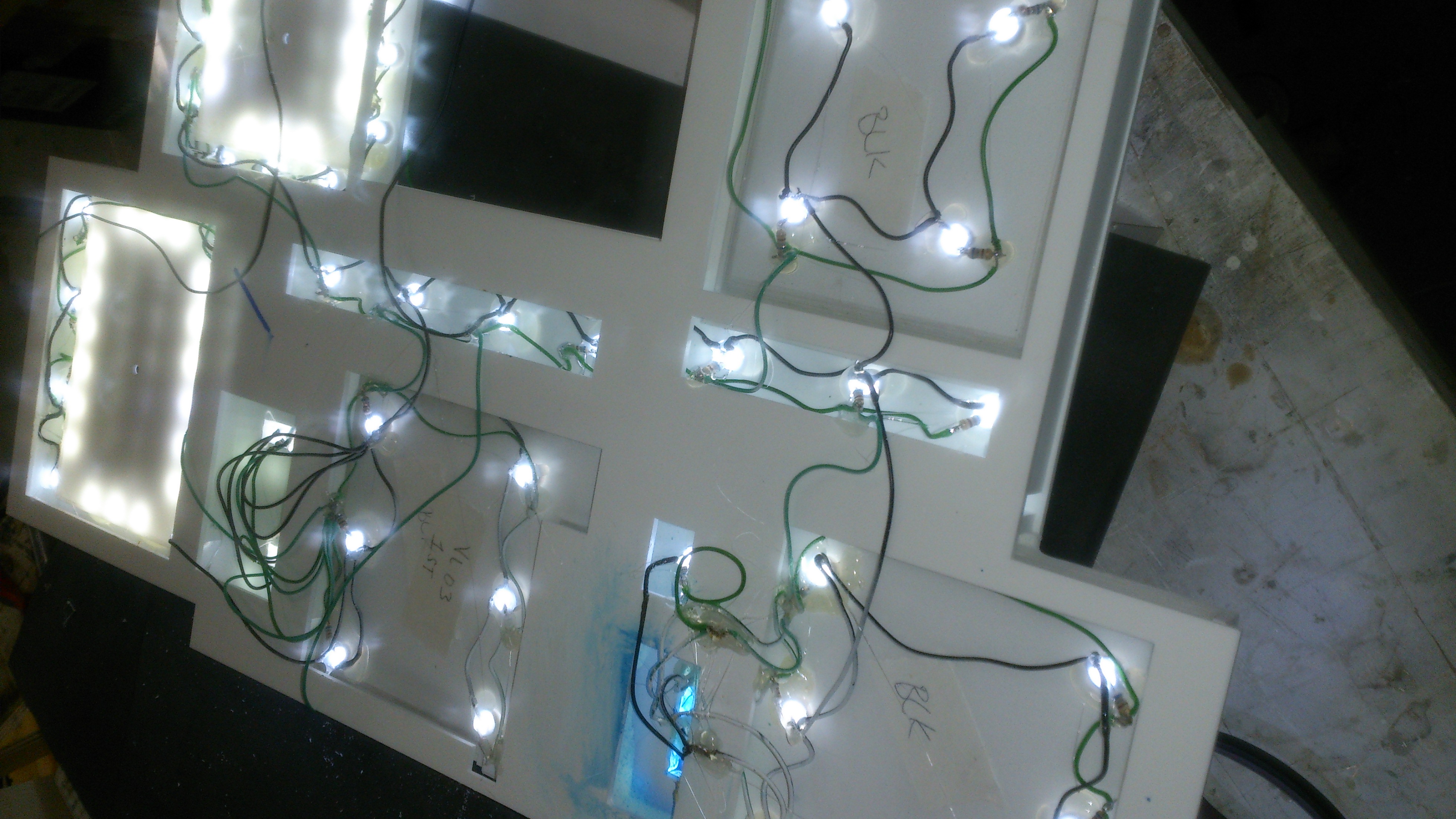

Interior lighting and TV on architectural model with Boyd Models

  • LED Down and up lighting as well as under ceiling.
  • Miniature lamps and chandeliers.

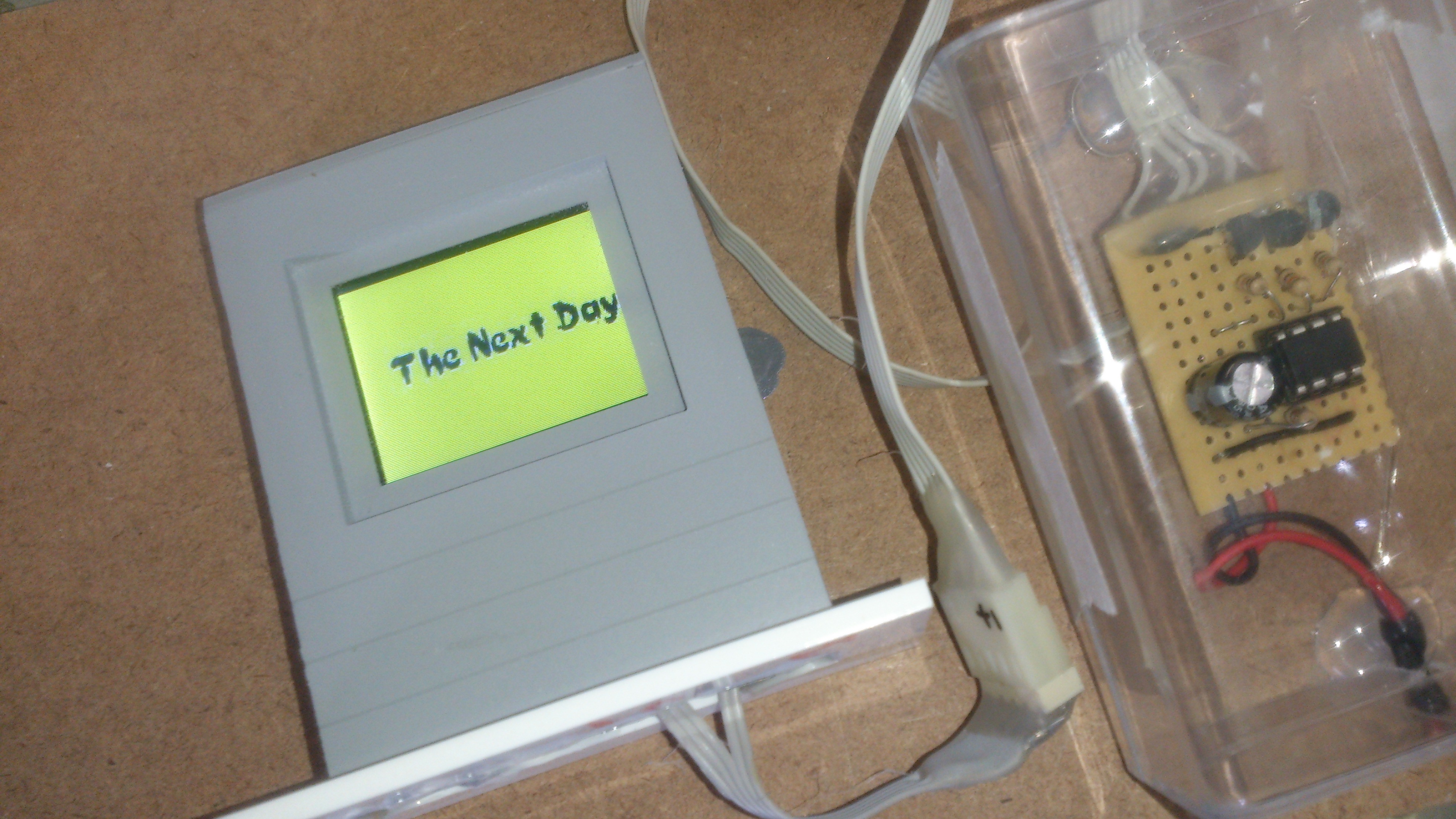

  • Miniature TV set to play video clip.

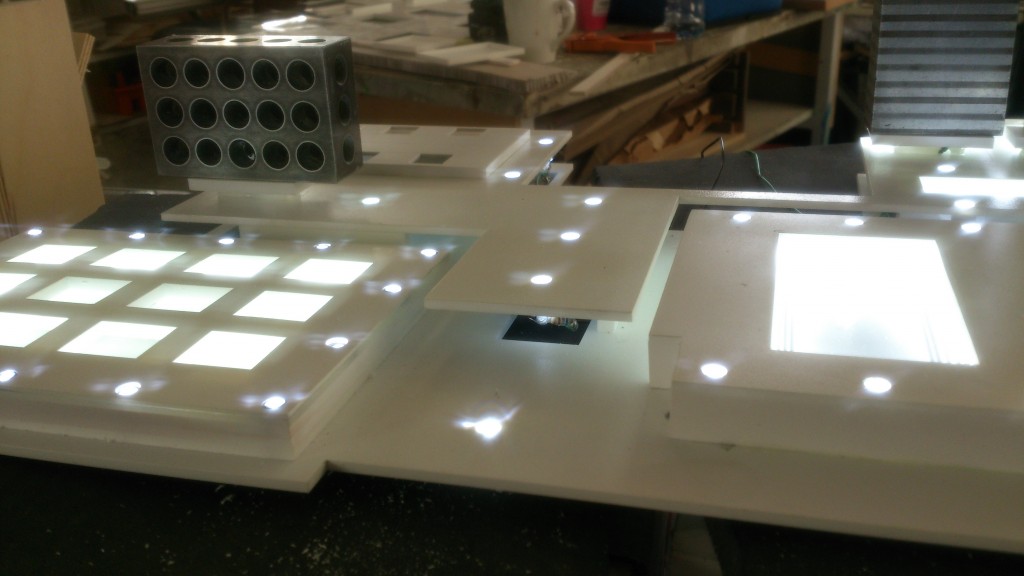

DSC_1139 DSC_1137DSC_1181 DSC_1186    DSC_1171

Technologies and skills used: Micro-controllers, LEDs etc

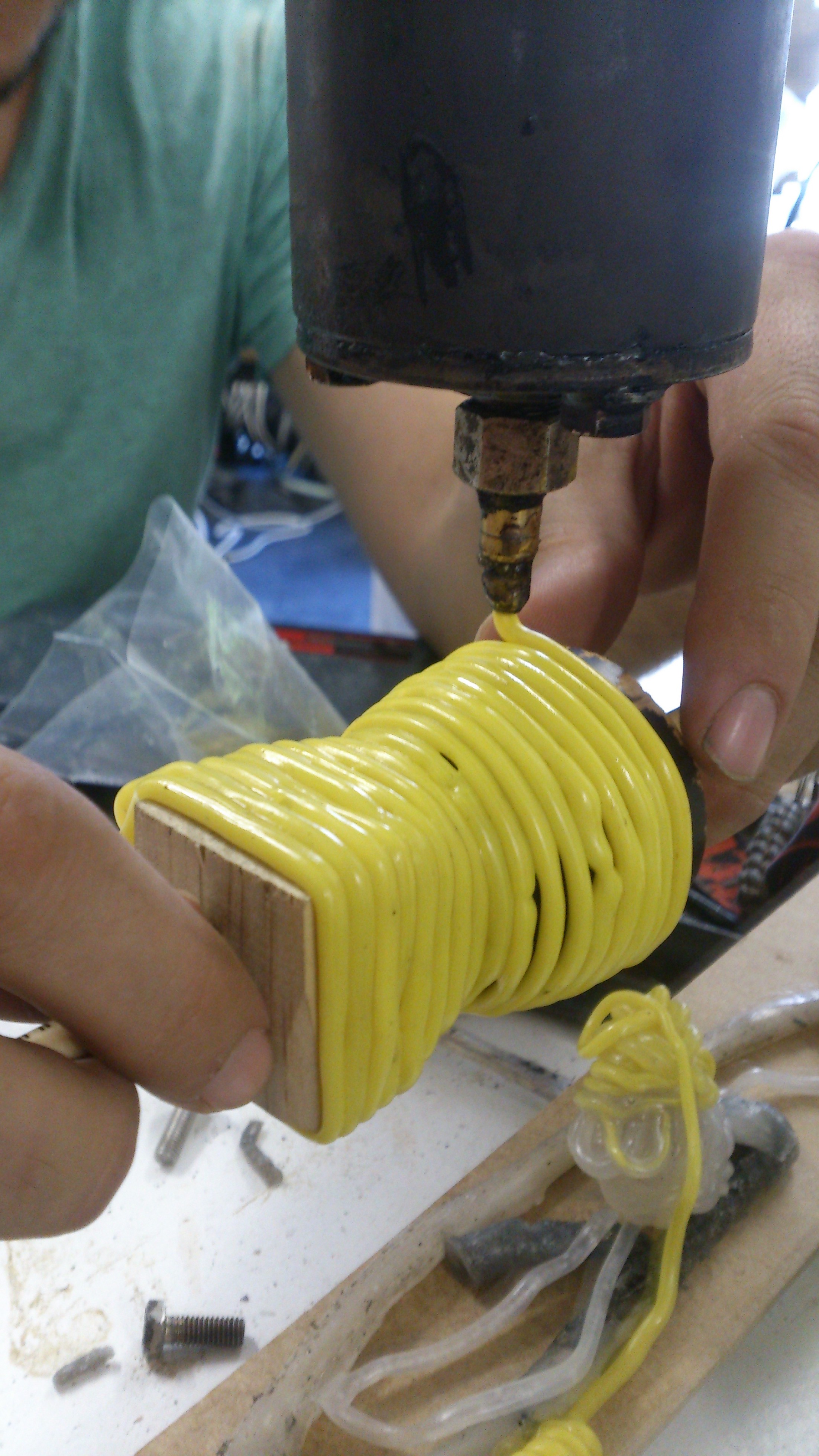

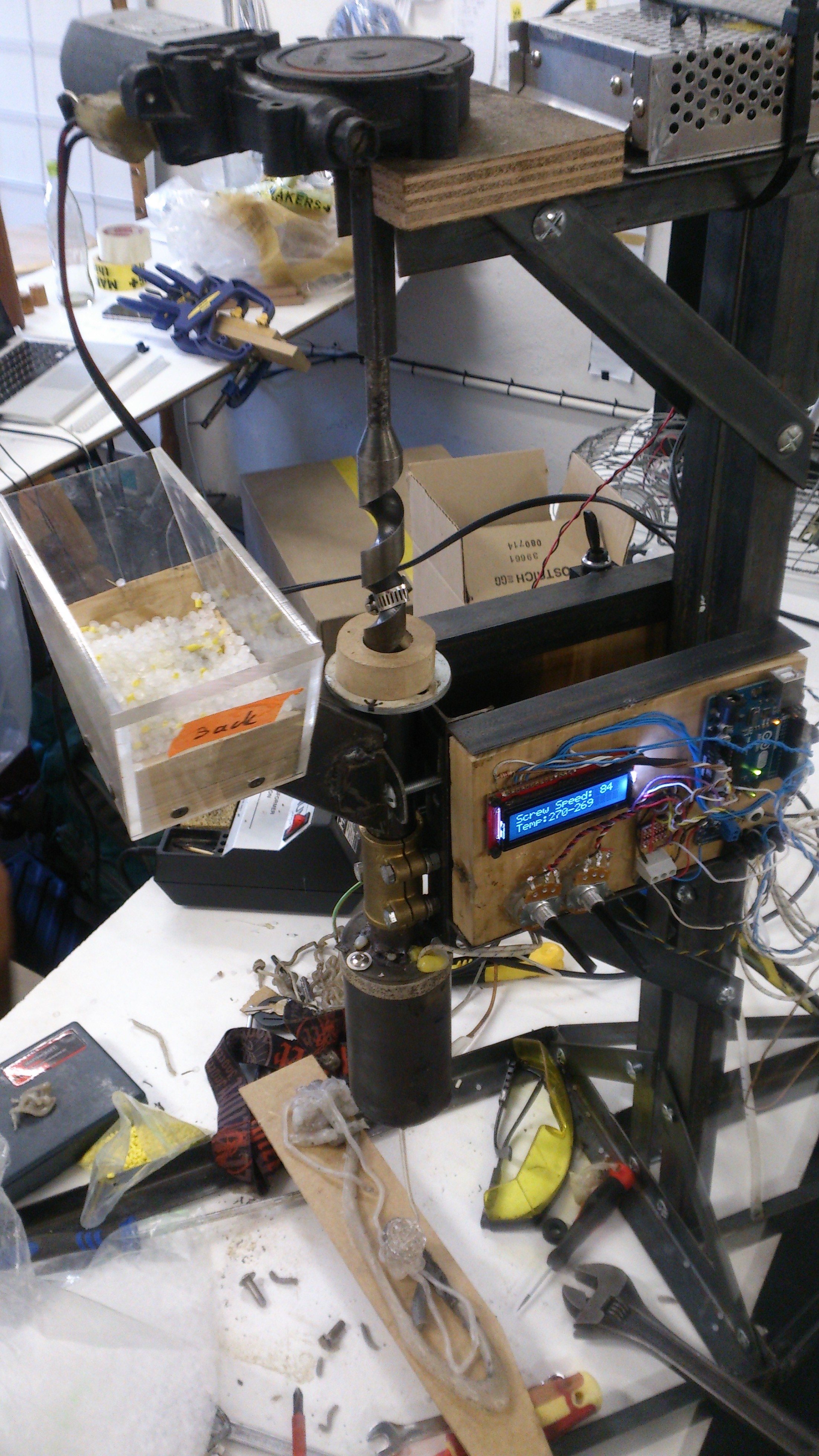

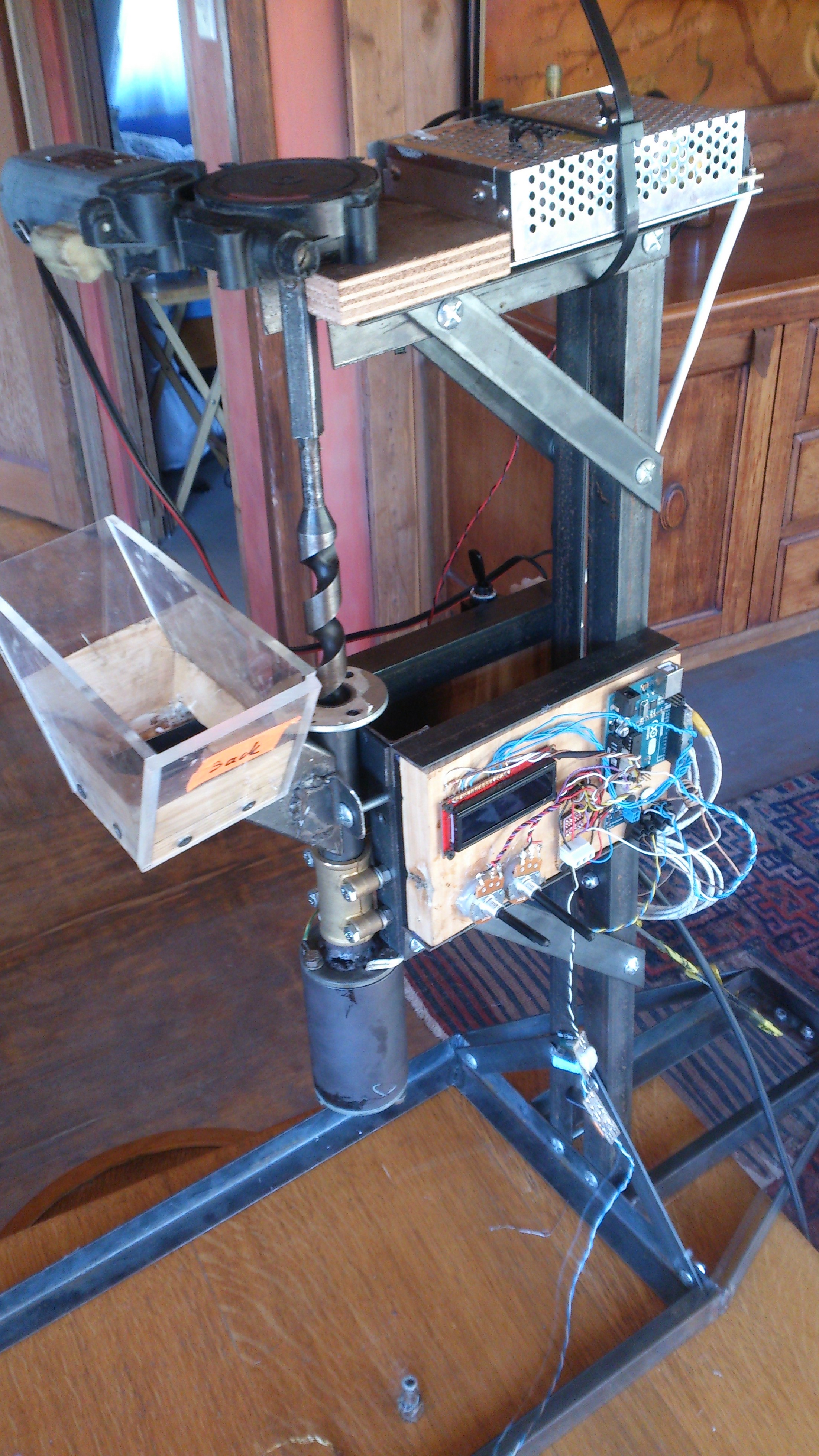

Plastic extruder project with ThingKing

  • Principal is to be able to take old used plastic products and scraps and create new usable items with the old plastic by melting it and extruding it in to new products.
  • System heats up to temperature set by a knob.
  • System then drives screw at speed set by a knob to drive the molten plastic out the extruder nozzle.
  • Extruded plastic is then used to create new product.

DSC_1475 DSC_1478 DSC_1481

Technologies and skills used: Micro-controllers, Arduino, FETs, Relays, Opto-isolators, Thermocouples, Motors, Heater elements etc

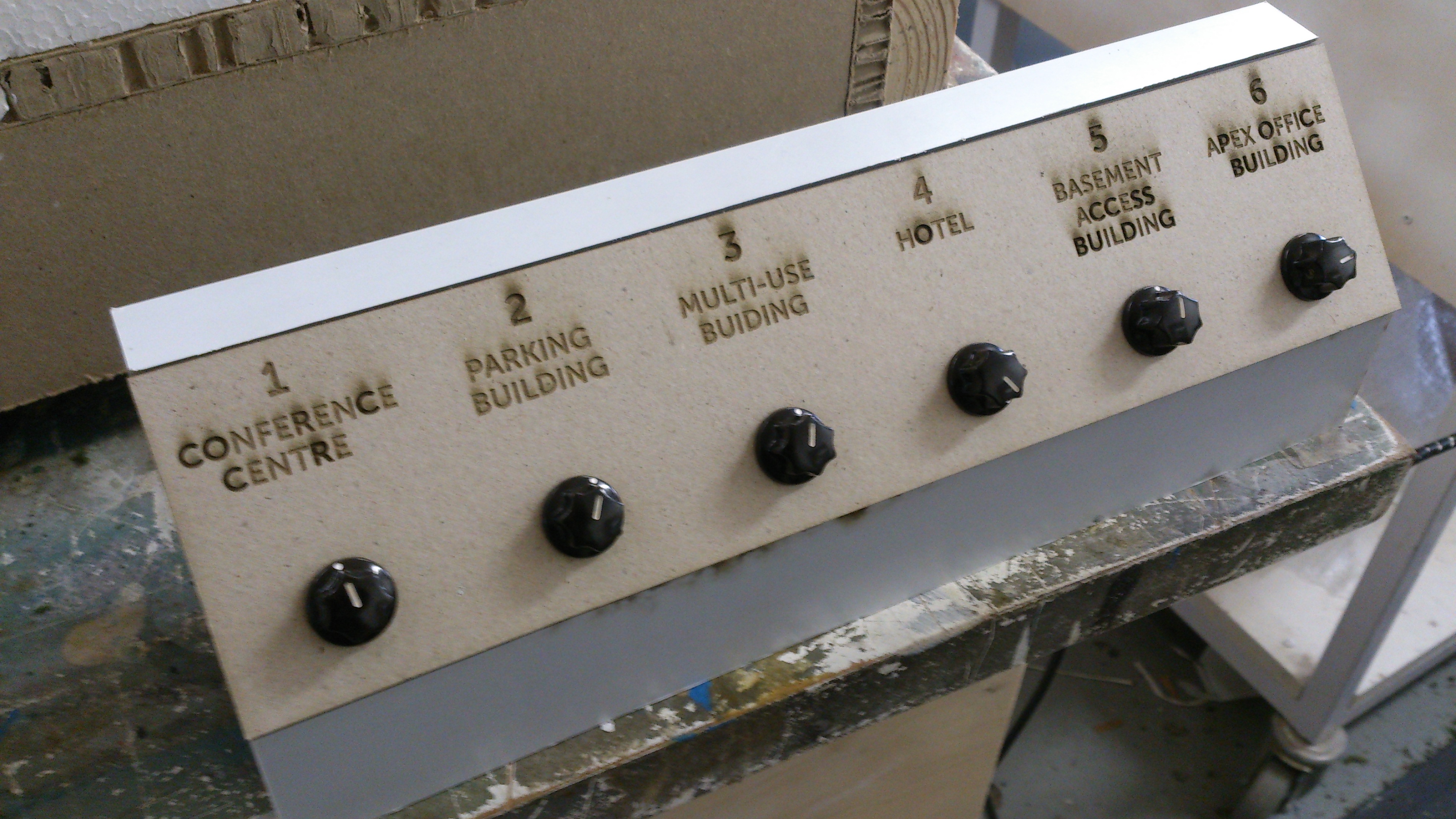

Dimable lighting in architectural models with Boyd Models

  • Installing dimmable LED lighting in architectural models.
  • Each Set of buildings is dimmable independently.

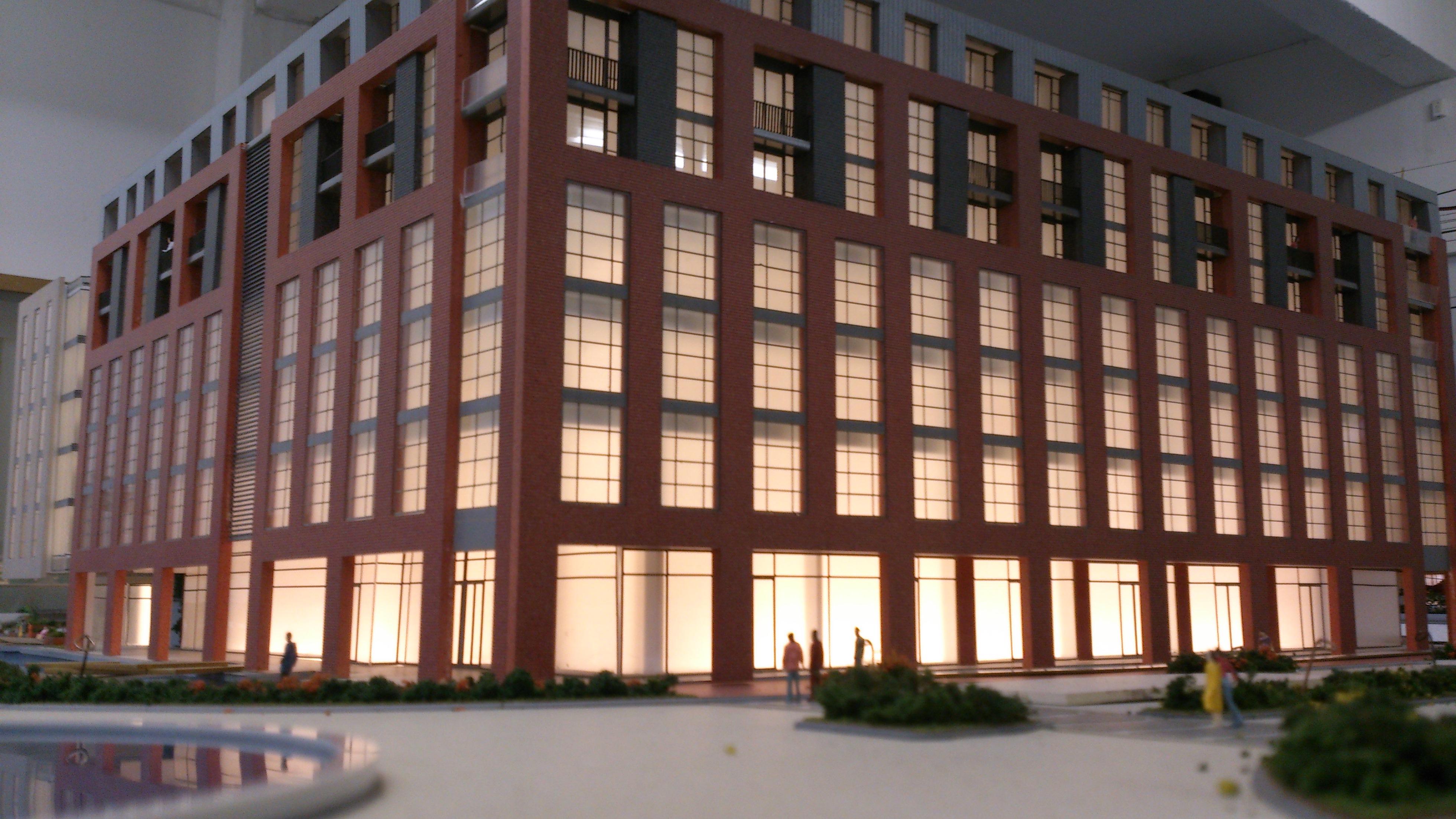

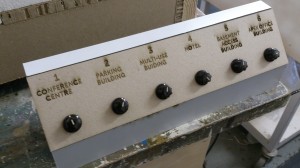

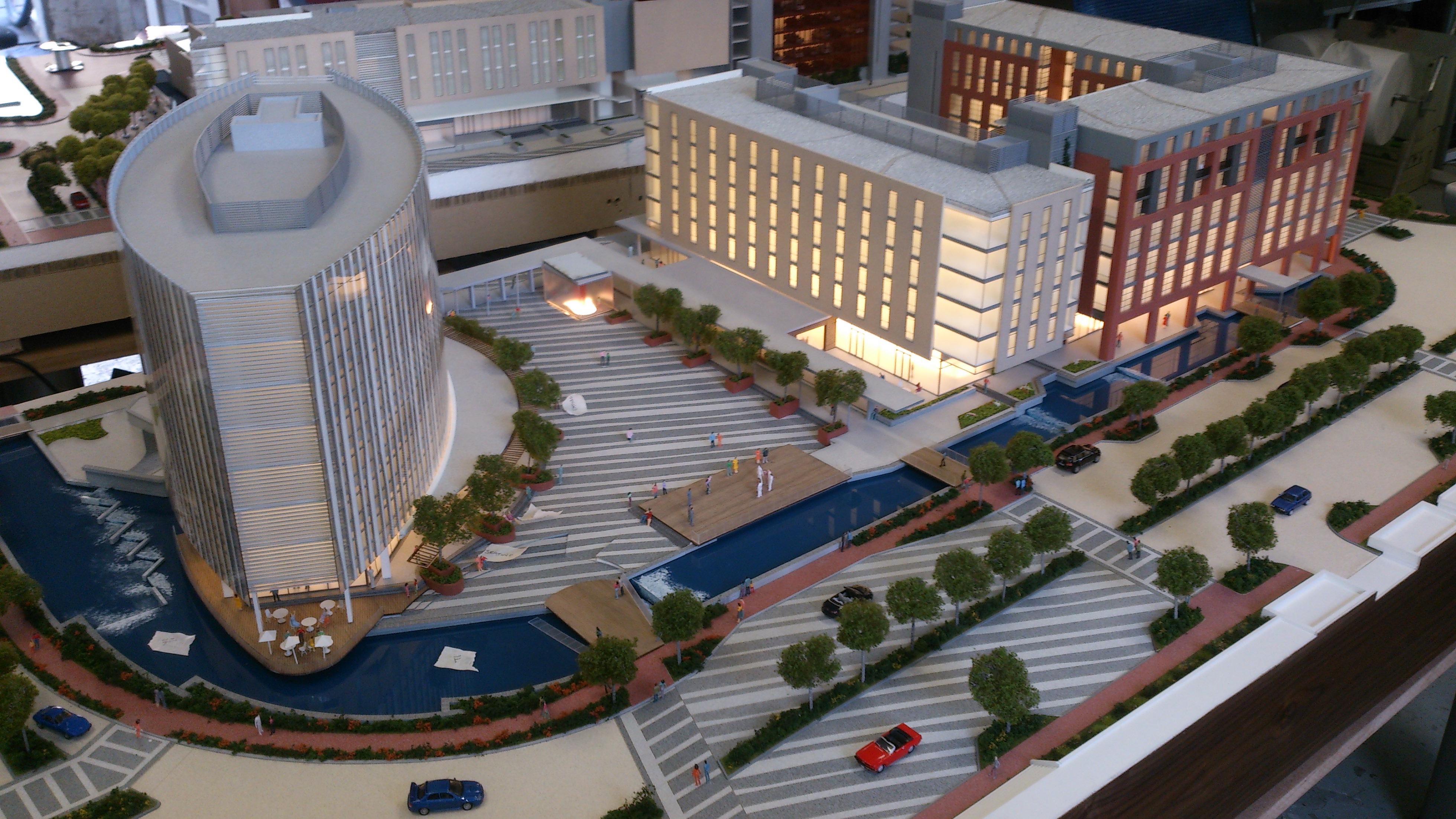

DSC_0496  DSC_0521 DSC_0499

Technologies and skills used: PWM dimming modules, PSU, LEDs etc.

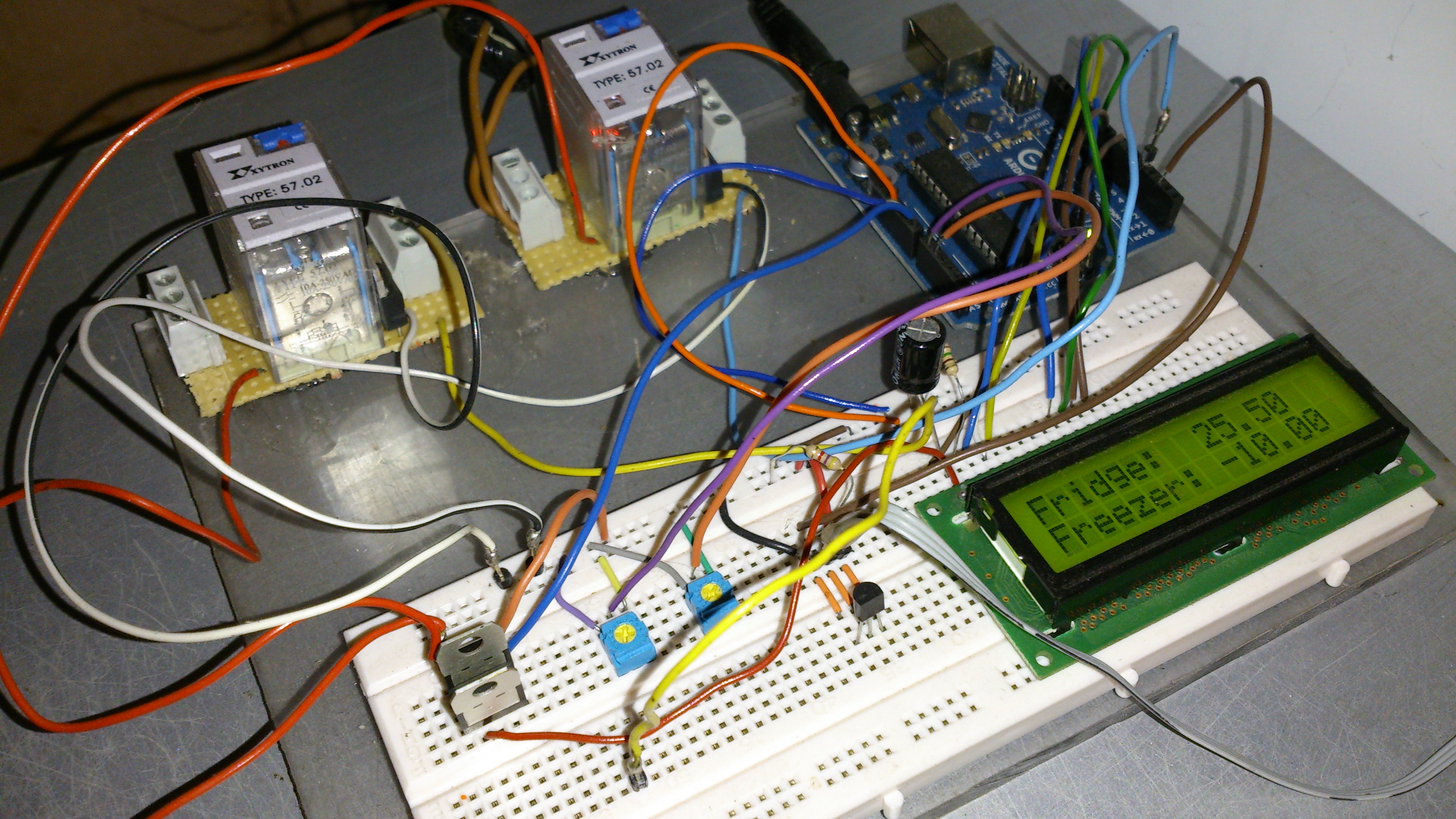

Digital Fridge and Freezer controller with LCD display.

  • Unit uses 2 digital temp sensors, one in the freezer and one in the fridge.
  • Temperature is read from the sensors and displayed on the LCD display.
  • Using knobs once can adjust the ideal temperature of both the fridge and freezer.
  • System then controls the fridges compressor and fan to maintain the fridge and freezers temperatures.
  • System was put together to test / develop ways to run refrigerators more efficiently.

DSC_+0109

Technologies and skills used: Arduino, LCD display, digital temp sensors, ADCs, relays and breadboard etc.

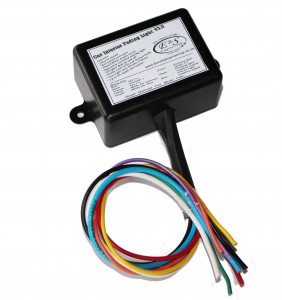

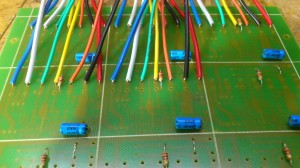

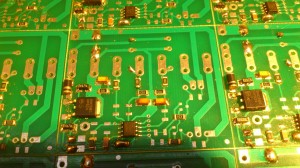

Car Fading Light Circuit

See the Products page for more info on this.



IMG_4649DSC_0976 DSC_0983

Technologies and skills used: PCB design software, micro-controllers, FETs, SMD components etc.

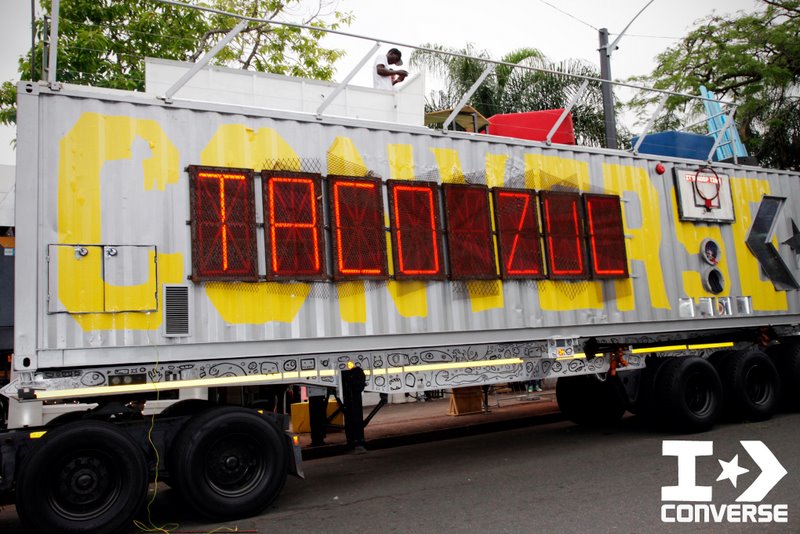

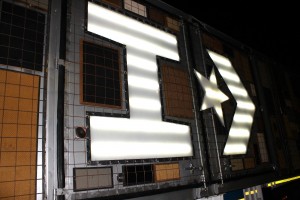

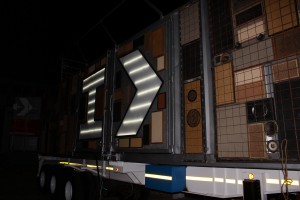

Converse Truck with ThingKing

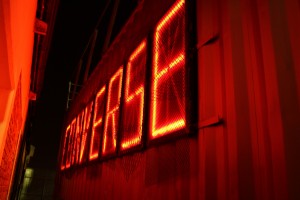

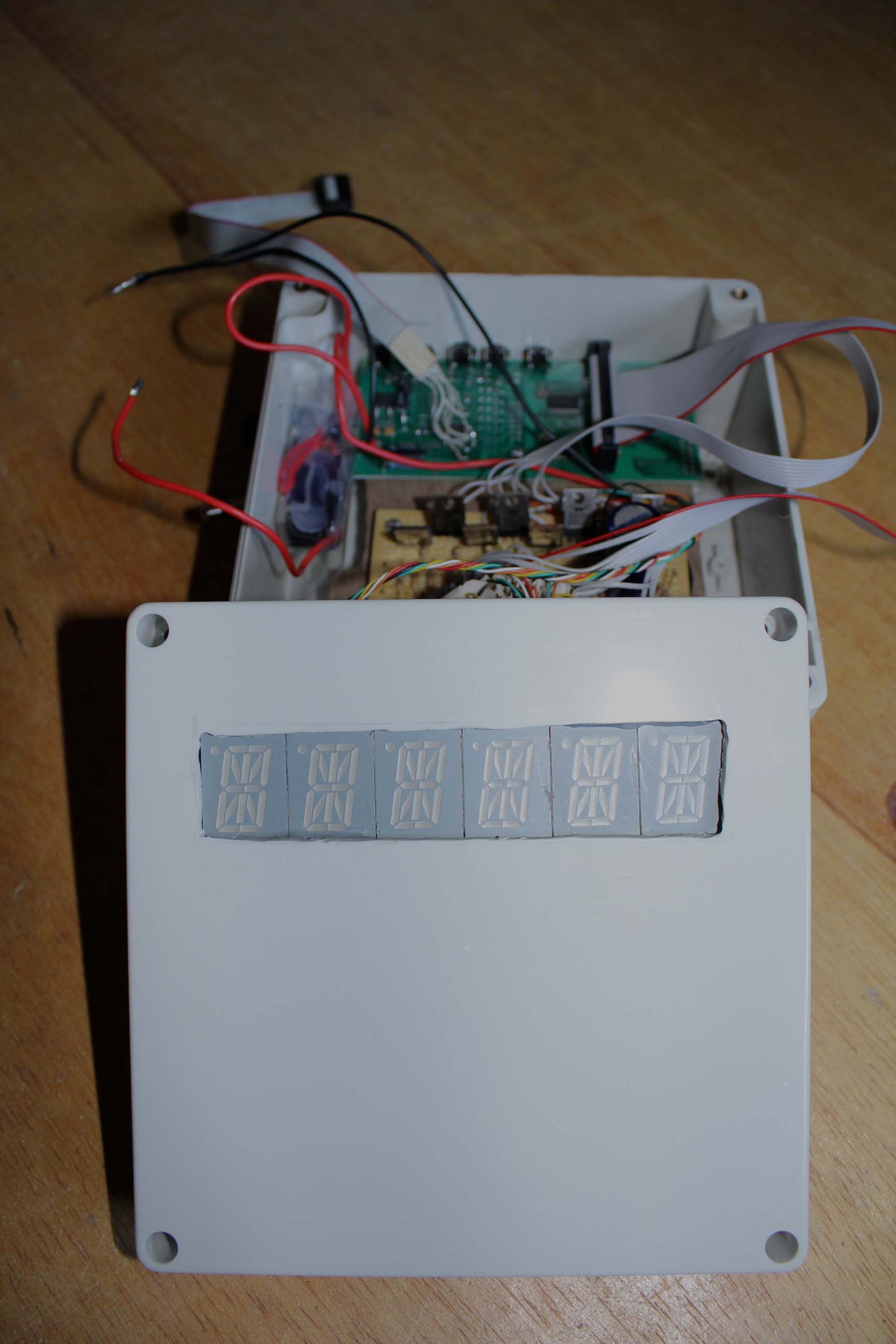

  • Large LED message board – built down the side of container with custom message programming and strobing / scrolling patterns.

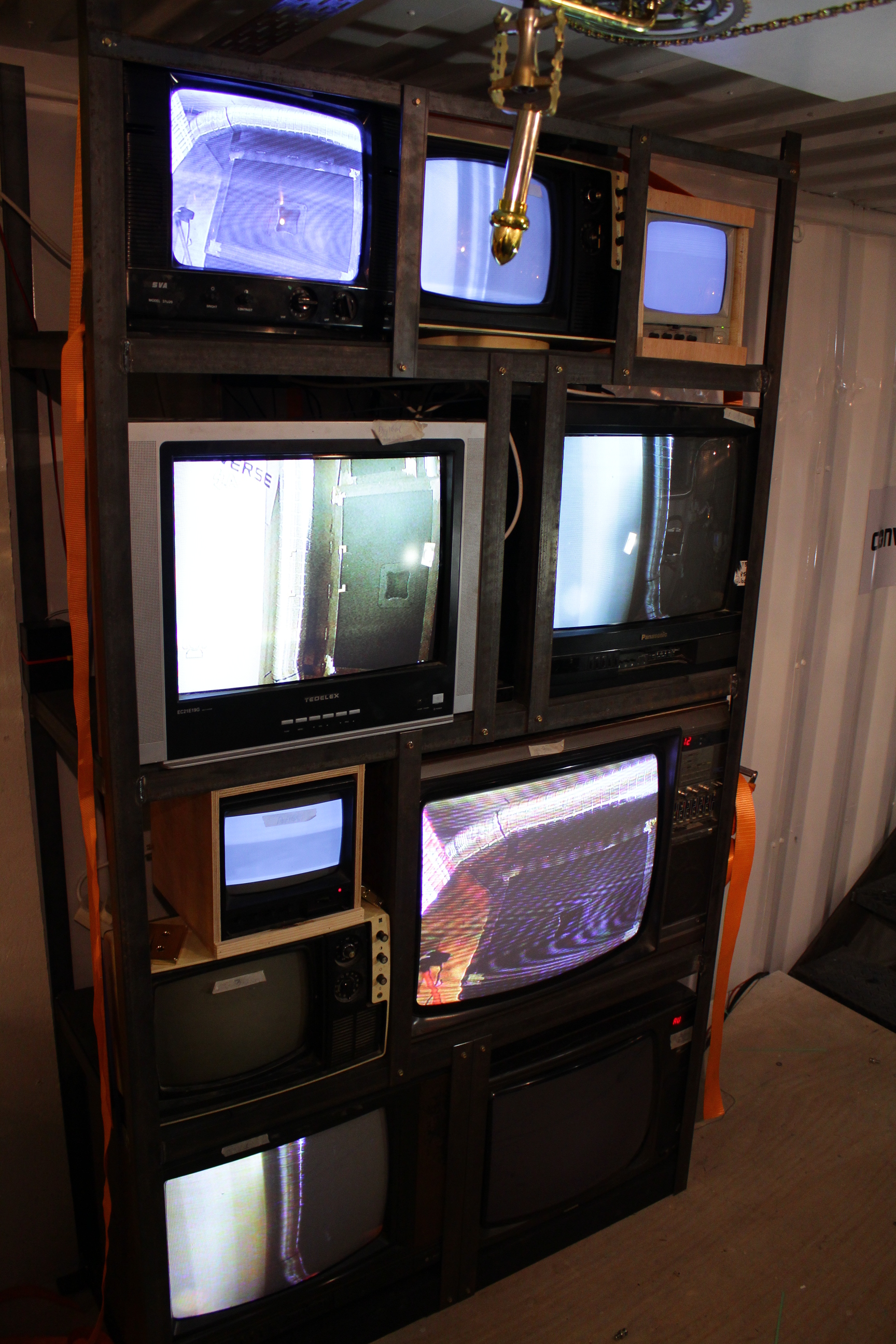

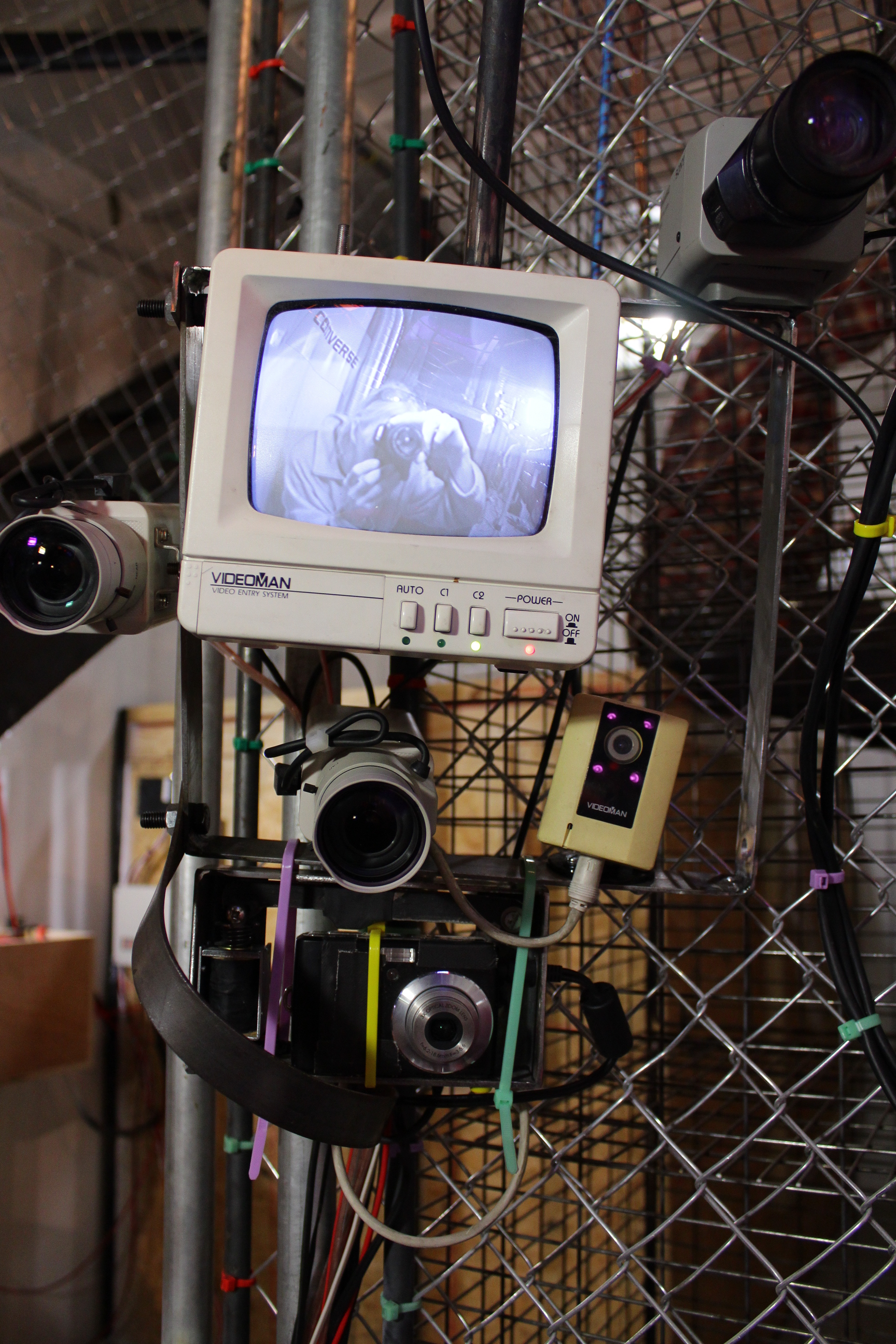

  • CCTV cameras inside truck – several CCTV cameras wired to old TV sets inside truck
  • Red button camera – by pushing a red button a solenoid pulls an arm on the cameras shutter button taking the picture.
  • Strobing star and chevron pattern – strobing / scrolling pattern using LEDs.

314914_275358935841819_90914625_n IMG_5512 IMG_5494 IMG_5456 IMG_5465

IMG_5493 IMG_5489IMG_5436



Technologies and skills used: micro-controllers, custom built circuits, LEDs, solenoids, CCTV cameras and TVs etc.




LED Tank Gauge

See the Products page for more info on this.

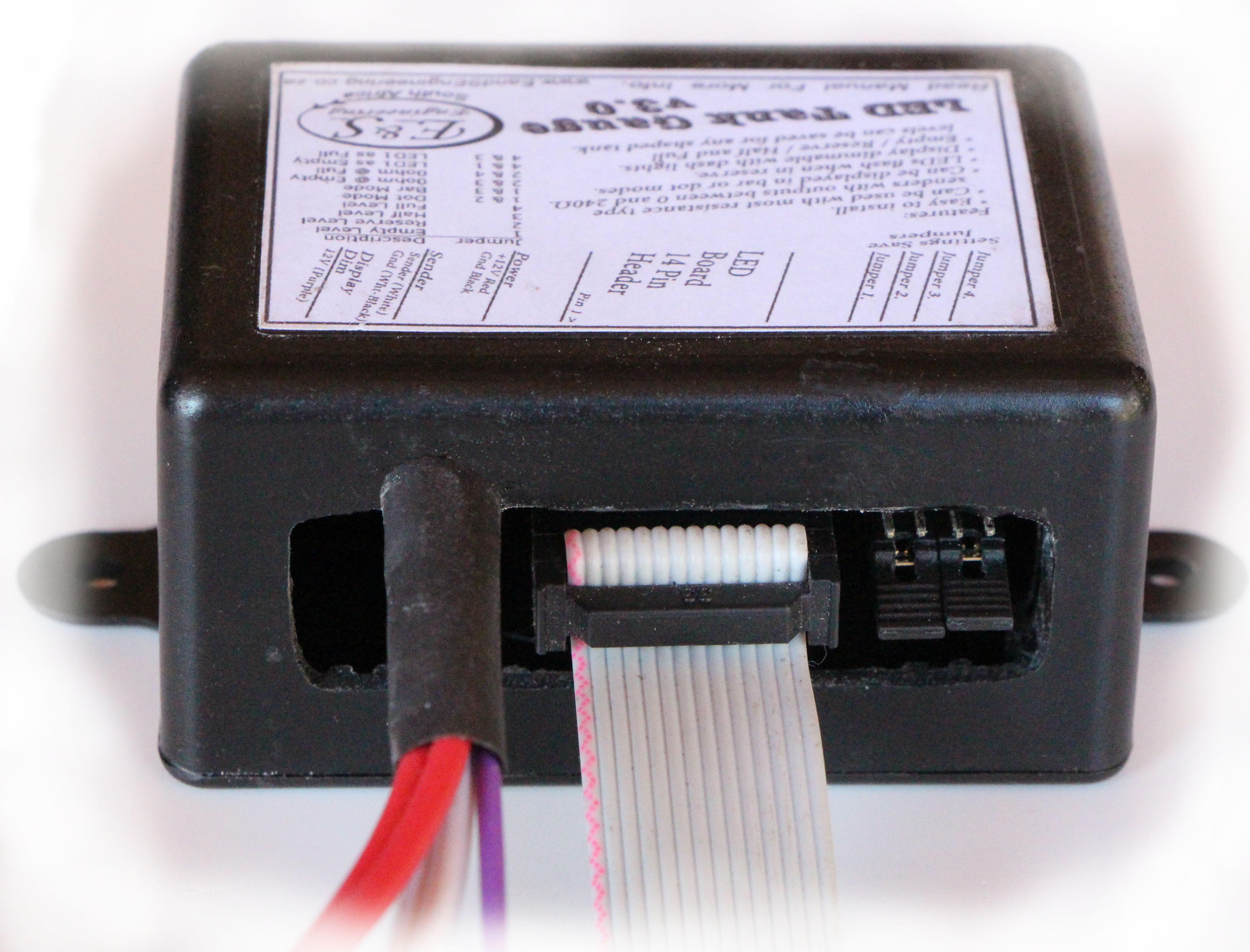

IMG_4522

Technologies and skills used: micro-controllers, LEDs, ADCs, SMD components etc.

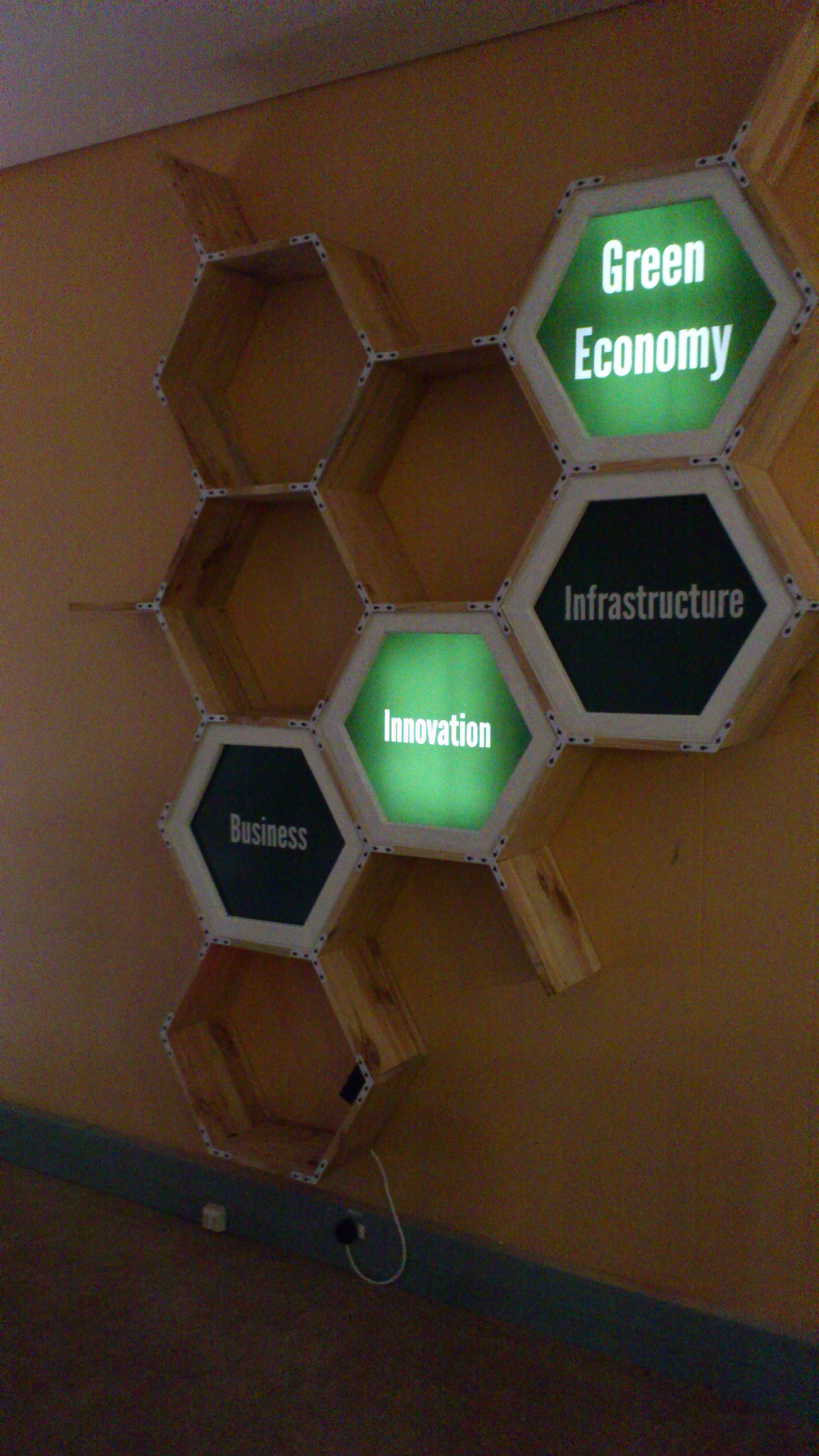

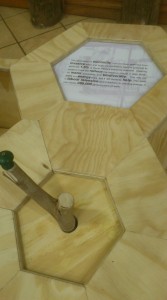

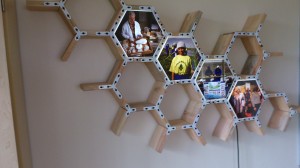

COP 17 Expo with ThingKing

  • LED back lit photos.
  • Handle crank that generates electricity to back light text.
  • Fading pulsing light boxes with key words on them.

DSC_1154

DSC_1092 DSC_1135

Technologies and skills used: micro-controllers, FETs, LEDs, Stepper motors as generator.

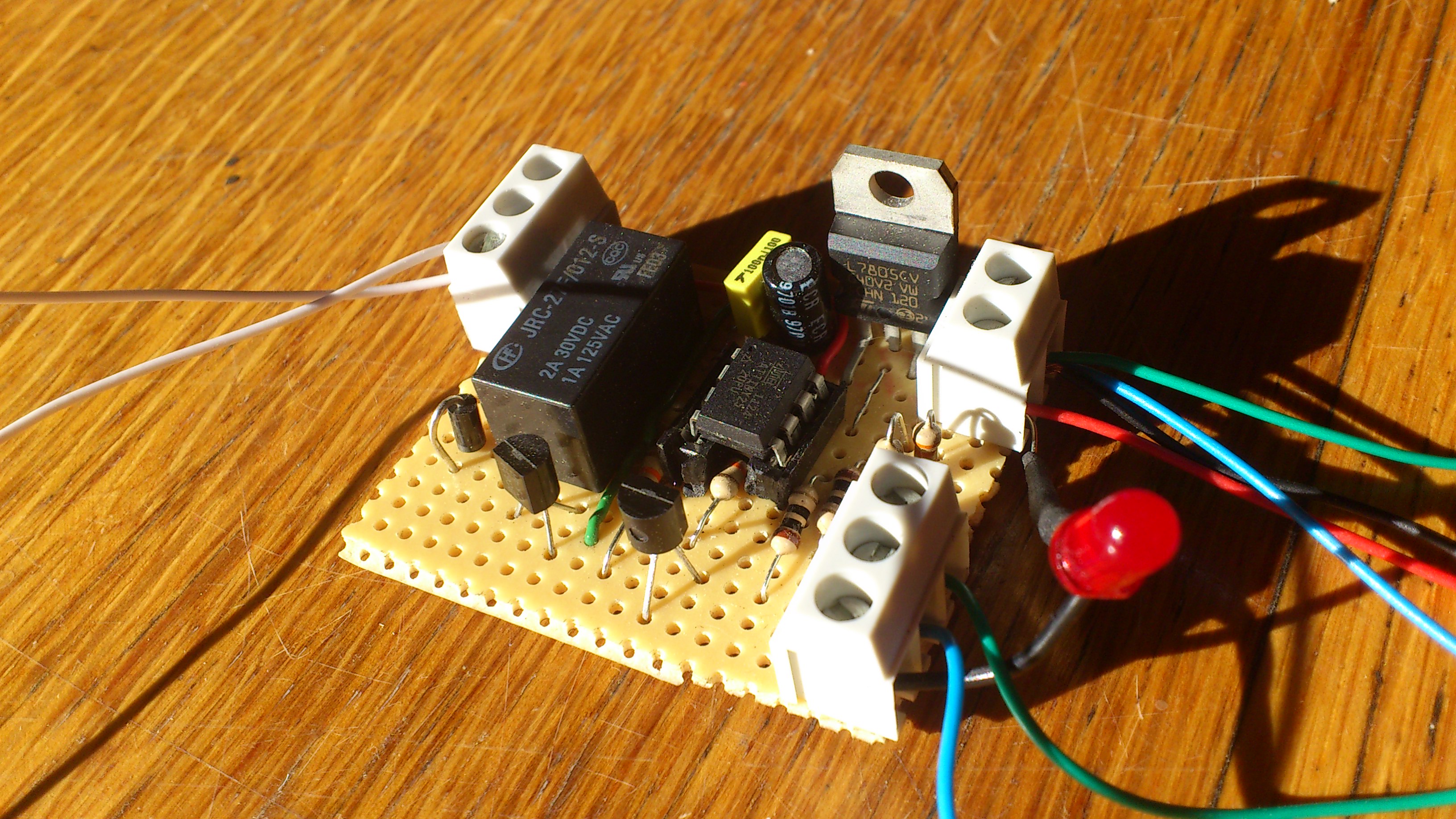

Mini alarm Circuit

This mini alarm circuit was custom built for a client.  It consisted of a single zone, the zone can be wired to a door magnet, PIR or any other kind of sensor.  The circuit has a relay output which could be connected to a siren, light or another alarm etc.  It has a status LED which shows if the zone is open, closed and if the alarm is armed, disarmed or has gone off.  It also runs on 12Vdc so, could be used on a battery eg. in a car or solar powered system etc.

DSC_0745

Technologies and skills used: micro-controllers, relays, ADCs etc.

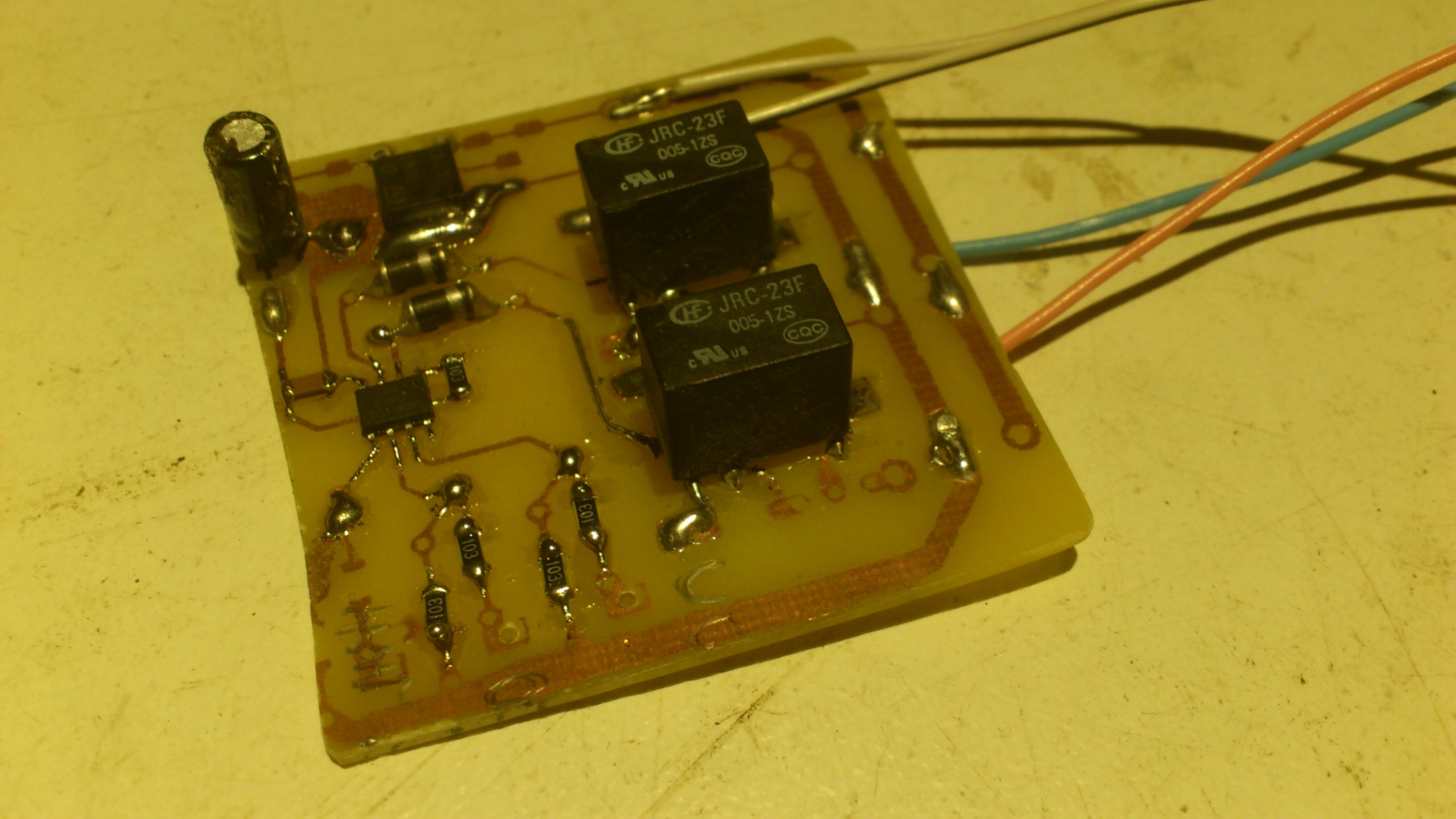

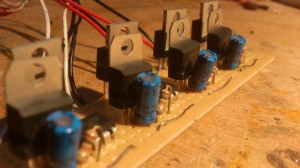

Vertigo Store Stand with ThingKing

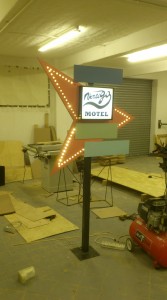

  • Strobing light box- strobing LEDs
  • Motorized curtain inside caravan – curtain opens for a half a minute and then closes again, this process loops every 10 minutes.

DSC_0832 DSC_0847 DSC_0828

DSC_0826

Technologies and skills used: micro-controllers, custom built circuits, LEDs, motors, switches etc.

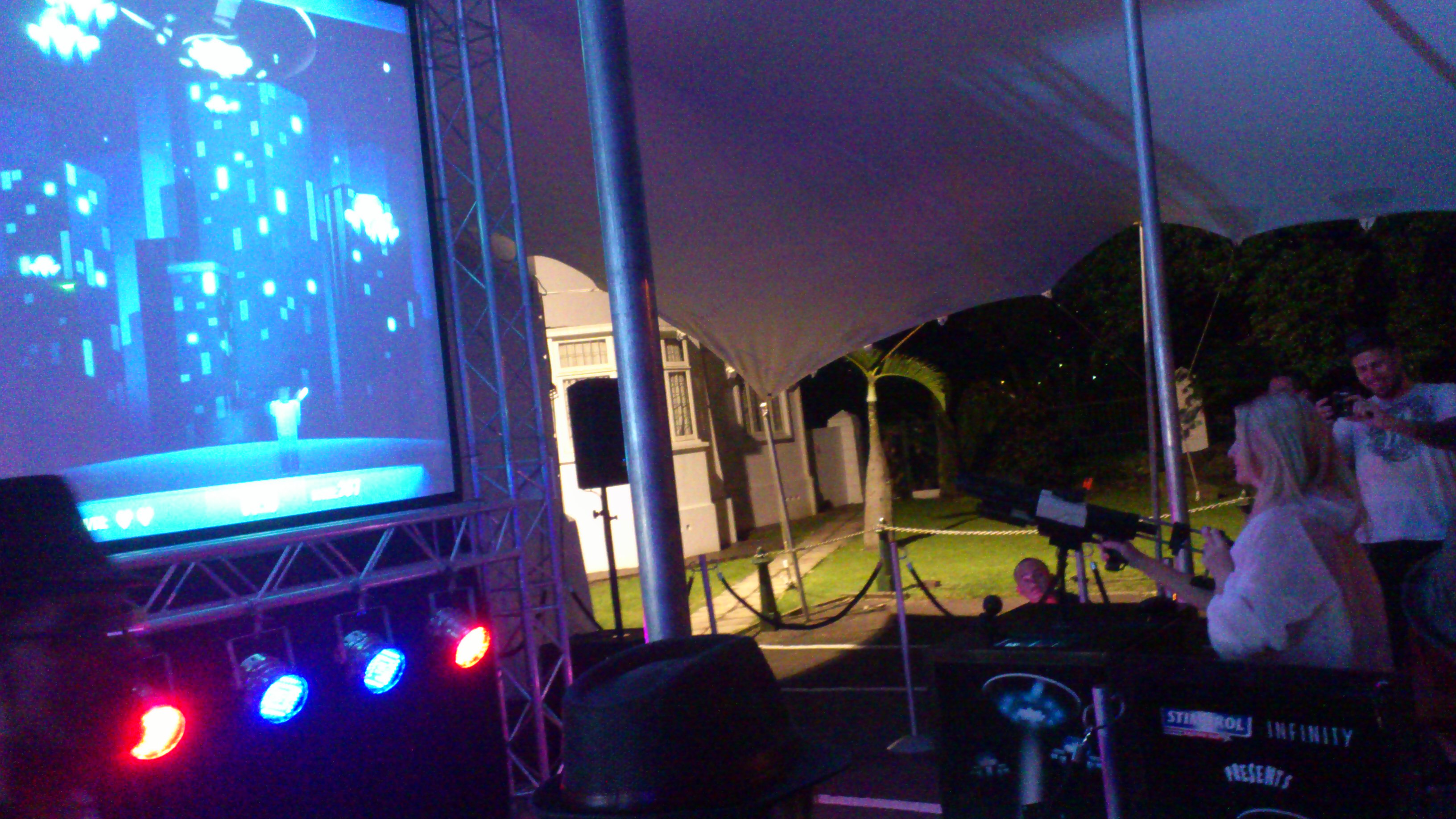

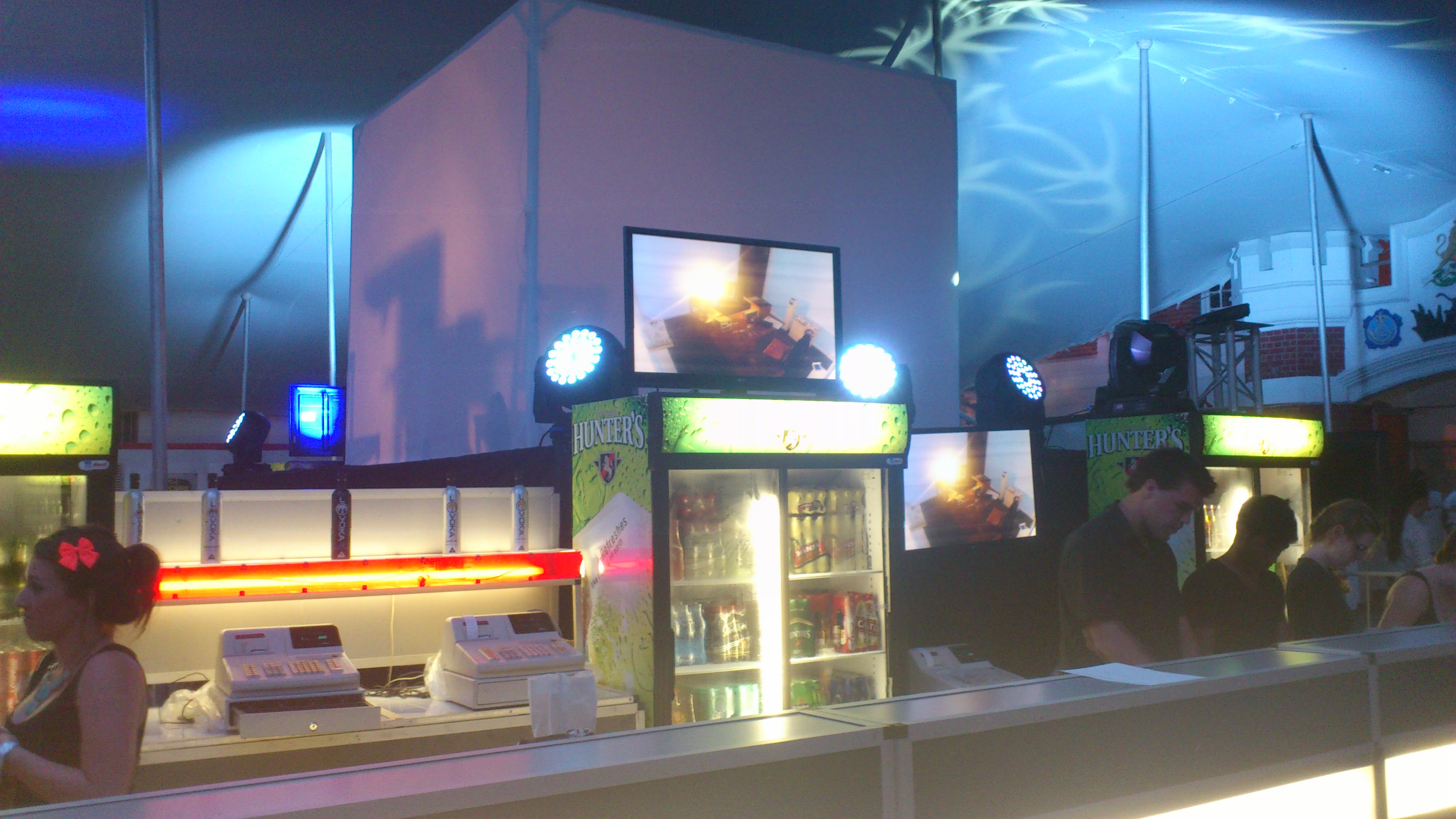

Stimorol Party with ThingKing

  • Shadow box – a wooden frame covered in white fabric with 4 lights (one for each wall) that strobe in a circular direction casting shadows on the walls opposite the light.

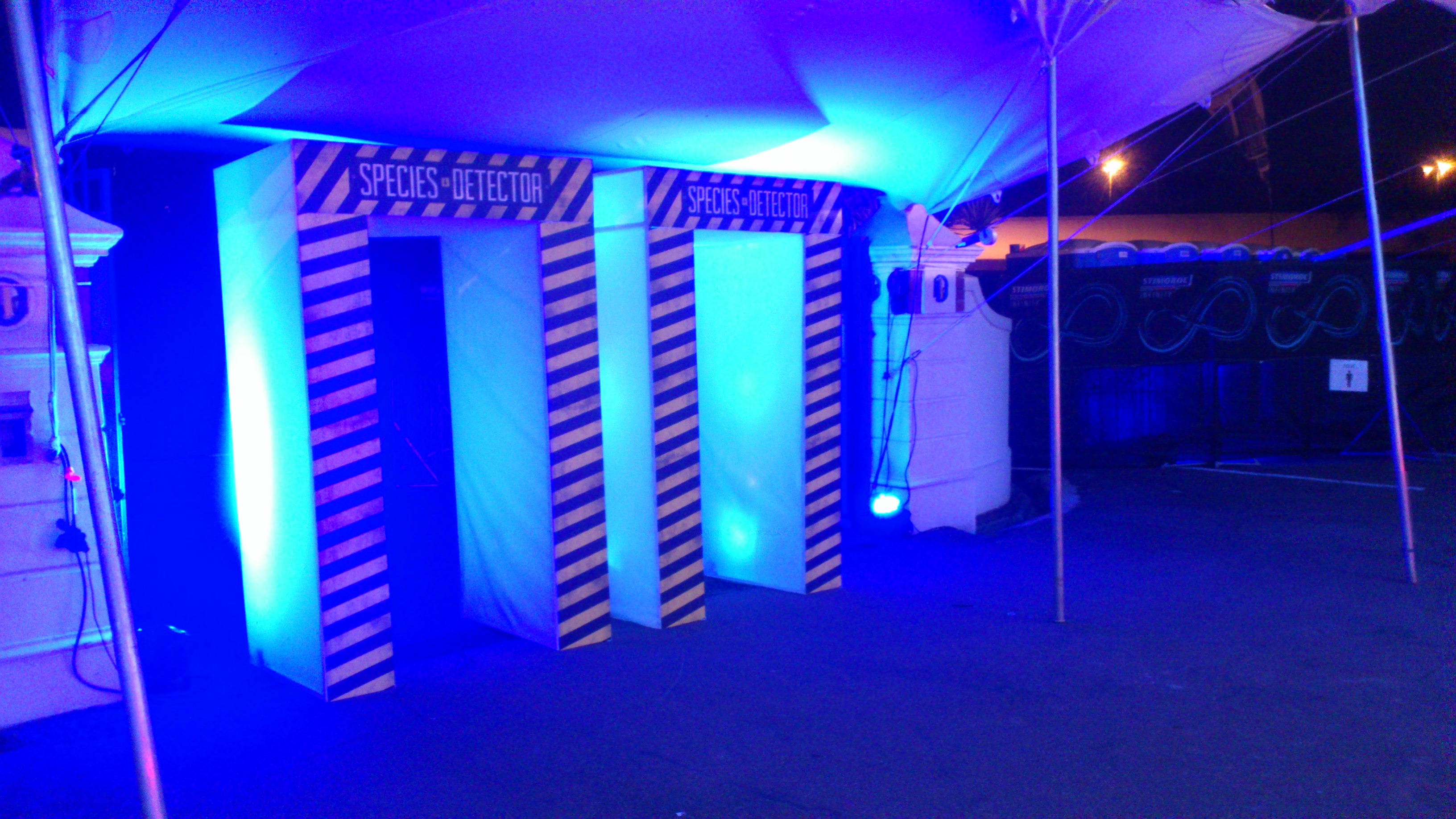

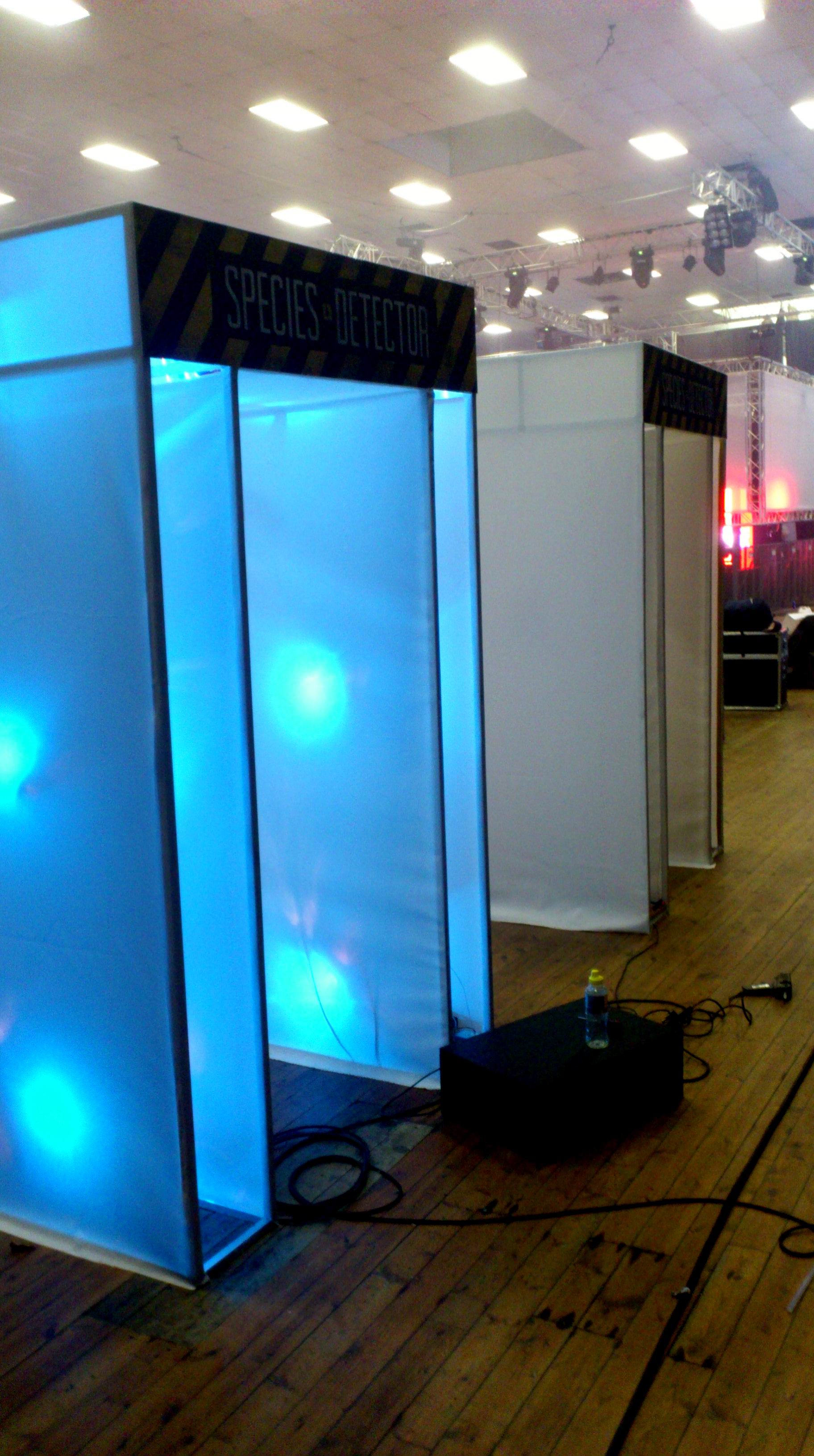

  • Alien detector -an aluminum frame covered in white fabric with strobing lights and siren in each unit that is triggered by a remote.
  • Alien war game – hacked kids gun with laser mounted in the barral and sound module both wired up to the trigger.

DSC_1218 DSC_1216 DSC_1207

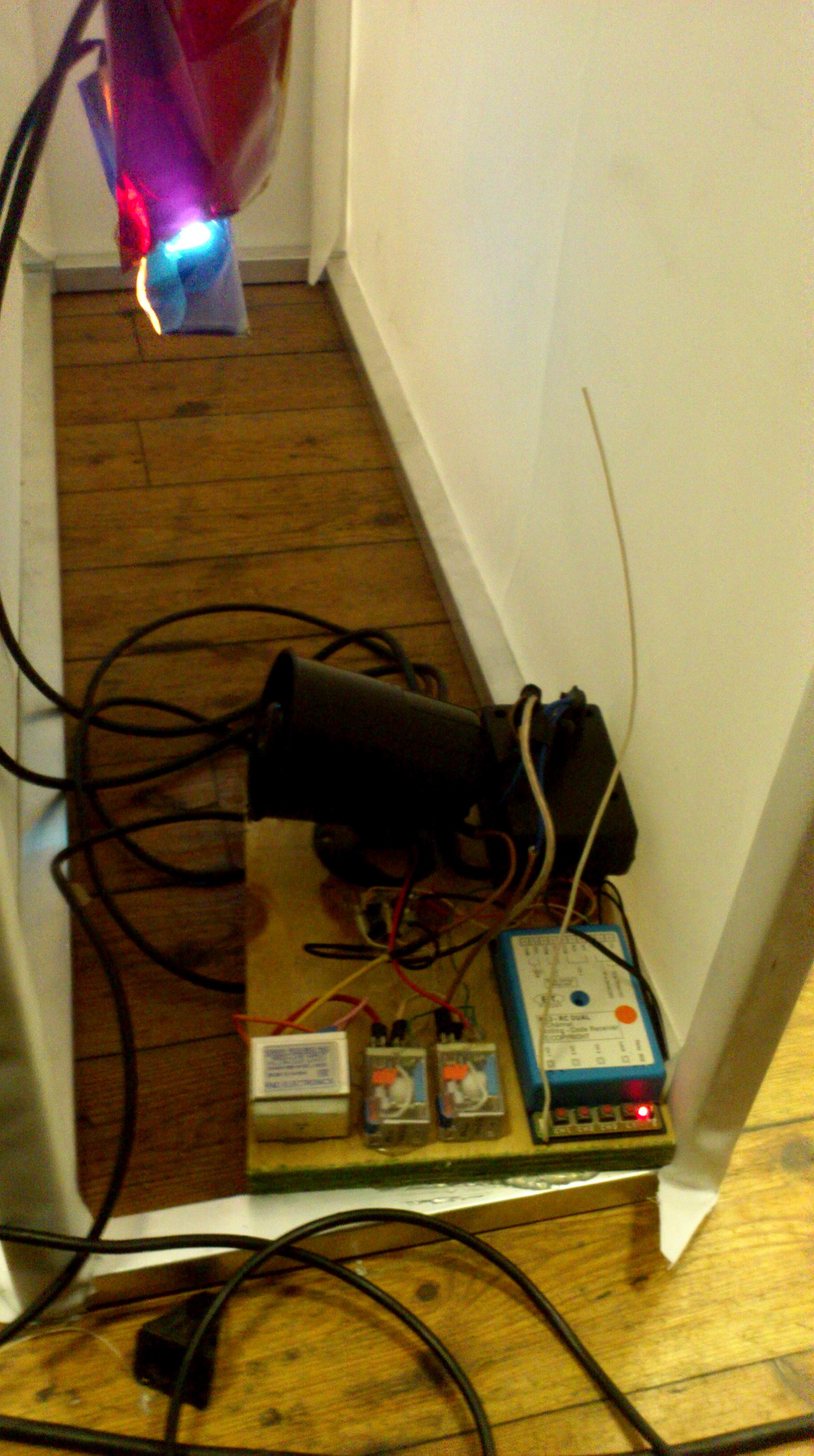

DSC_1203 DSC_1198

Technologies and skills used: micro-controllers, custom built circuits, LEDs, motors, pulleys and cables, switches, word work etc.

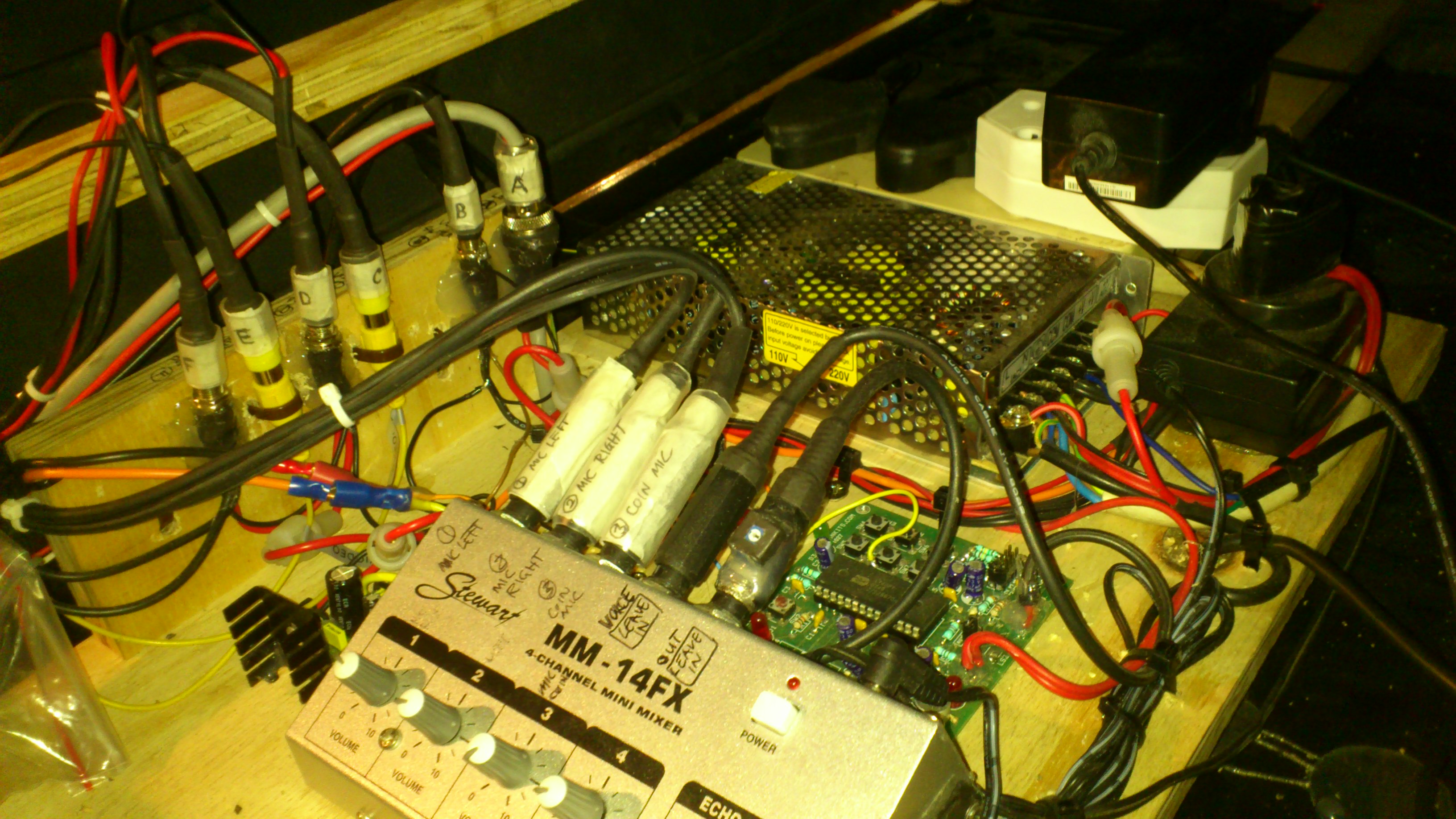

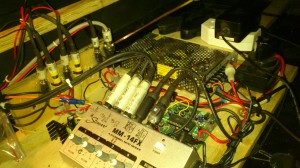

BOS vending machine with ThingKing

  • Screens – 2 cctv cameras looking at the workings of the vending machine and displayed on two small screens
  • Lights – lights fade on and off in different colours – sensor pics up sound in coin track when someone inserts a coin and triggers pulsing of LED lights, LEDs then go back to fading once can has dispensed.
  • Sound – contact mics picup sounds made by the vending machine (motors and gears, falling coins and cans) and play it though 2 speakers. Once can is dispensed, alien voice says “Enjoy your BOS ICEed Tea human”.

DSC_0961

Technologies and skills used: micro-controllers, custom built circuits, LEDs, Mics / amps / speakers, CCTV cameras and screens etc.




Prototype LED Break and Indicator lights for Beetle

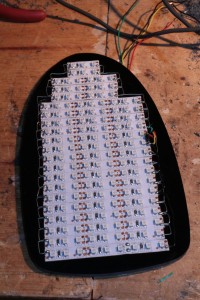

This was a prototype for a replacement to a Beetle tail light, it includes: indicator, tail and break lights.

Technologies and skills used: soldering, led stips, 12 volt regulator circuit using L7812 IC.

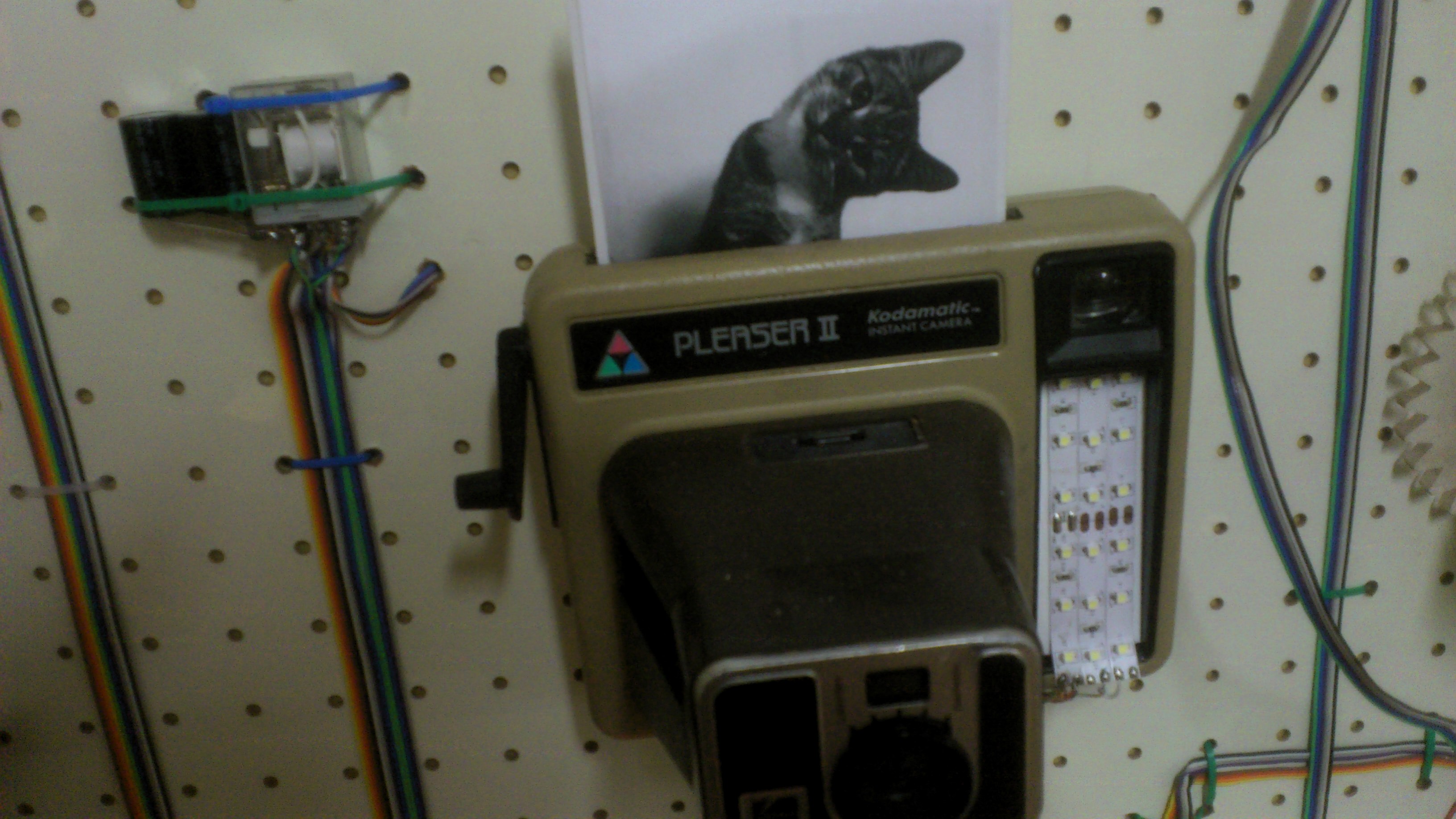

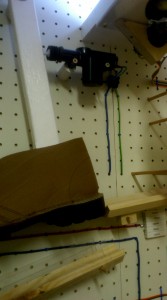

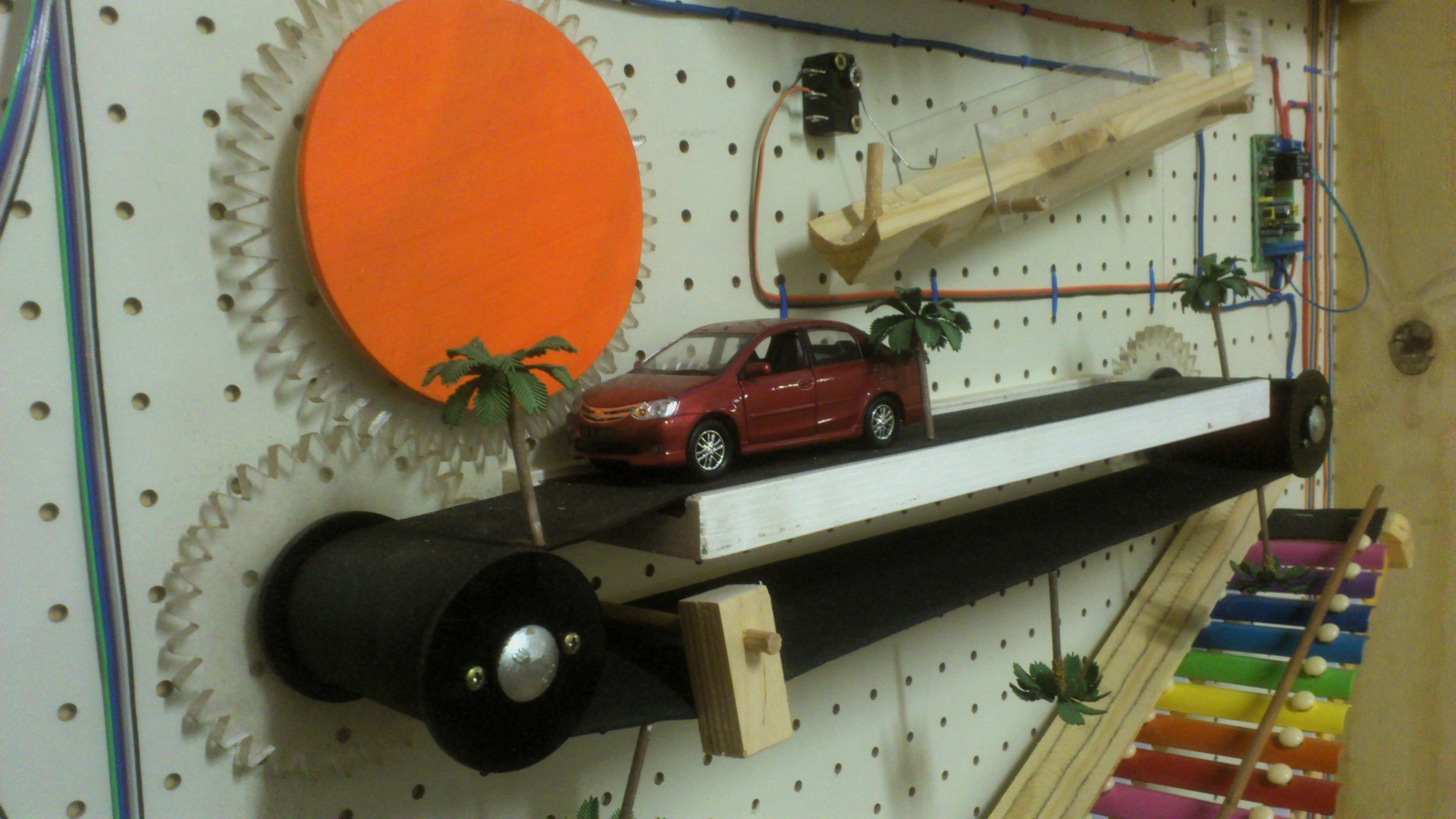

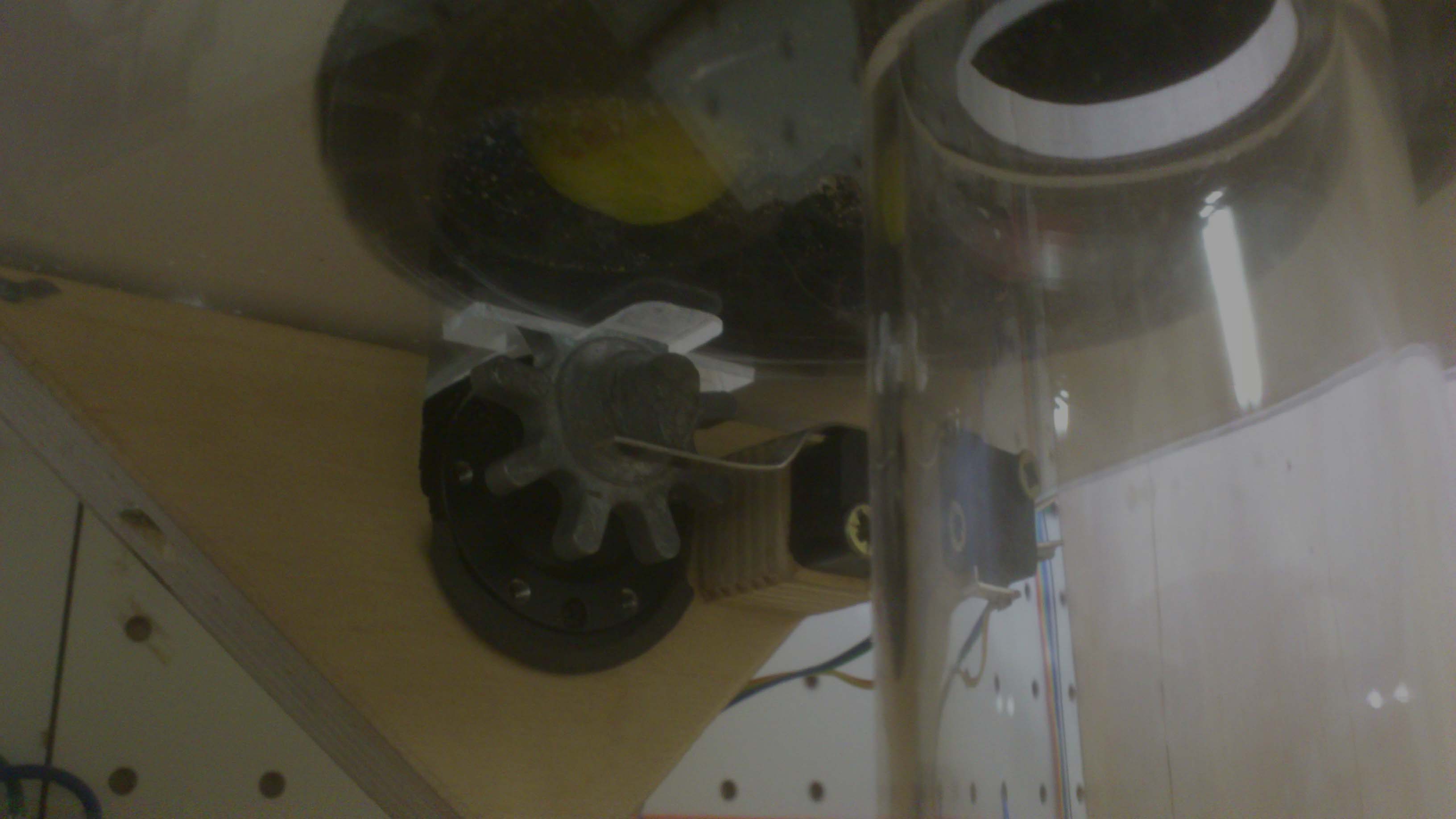

Toyota – Tweet for Sweets with ThingKing

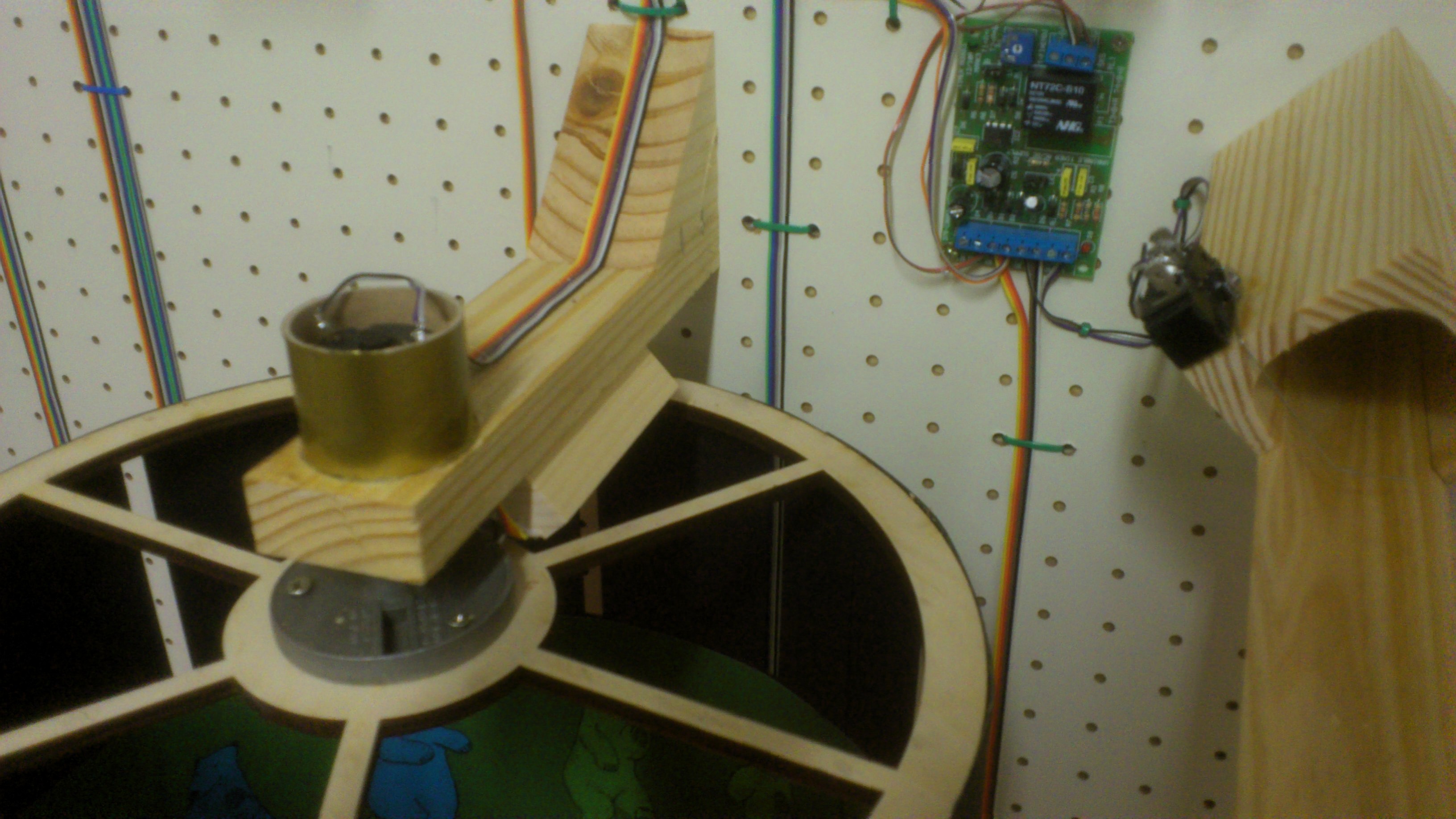

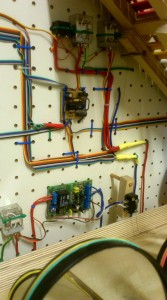

  • A gumball is dispensed by hacked / motorized gumball dispenser,  the gumball falls down tube and rolls down the track and is then blocked by the heel of a shoe.  After a delay, the shoe kicks out, hitting shakers and letting the gum ball falls into the track below.  Rolling down track, the gumball hits a coin switch which tuns on cars conveyor belt for a while, gumball lands on the conveyor belt and is pushed off the back of the conveyor belt.  Gumball then goes though sequence of xylophones and other elements.  Once the gumball reaches the bottom it triggers another coin switch which turns on a lifting belt as well as plays a keyboard, turns on a glitter ball and smoke machine for a time.  Gumball lands in the rubber lift mechanism and gets lifted back to the top while music is played on the keyboard, while glitter ball and smoke are happening.   When the gumball reaches the top of the lift, it falls off the top and into a funnel, triggering another coin switch which activates a hacked Polaroid camera and shows a picture of a cat for a time.  Gumball then rolls out of sight and returns out a hole lower down, the gumball then triggers another switch, turning on spinning visual.  Finally gumball rolls out though a sequence of switches that push on collapsing toys and then lands in a trough for the taking.

DSC_0358 DSC_0367 DSC_0366

DSC_0363 DSC_0358

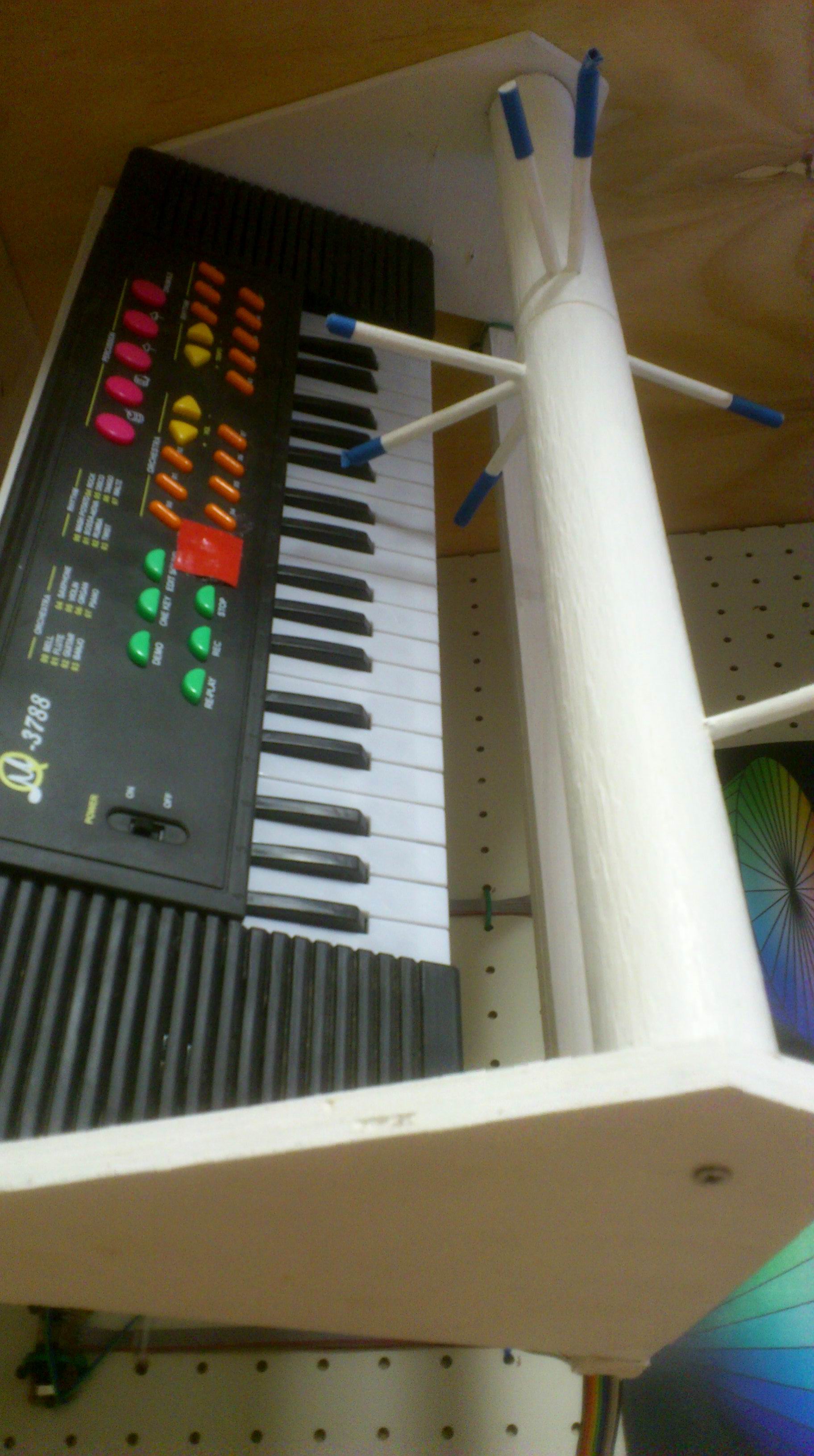

DSC_0371 DSC_0370 DSC_0365



Technologies and skills used: micro-controllers, custom built circuits, delay modules, motors, switches etc.

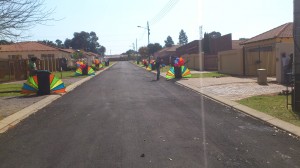

Toyota Etios with ThingKing

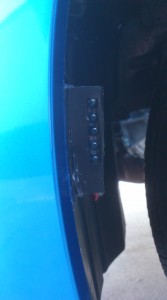

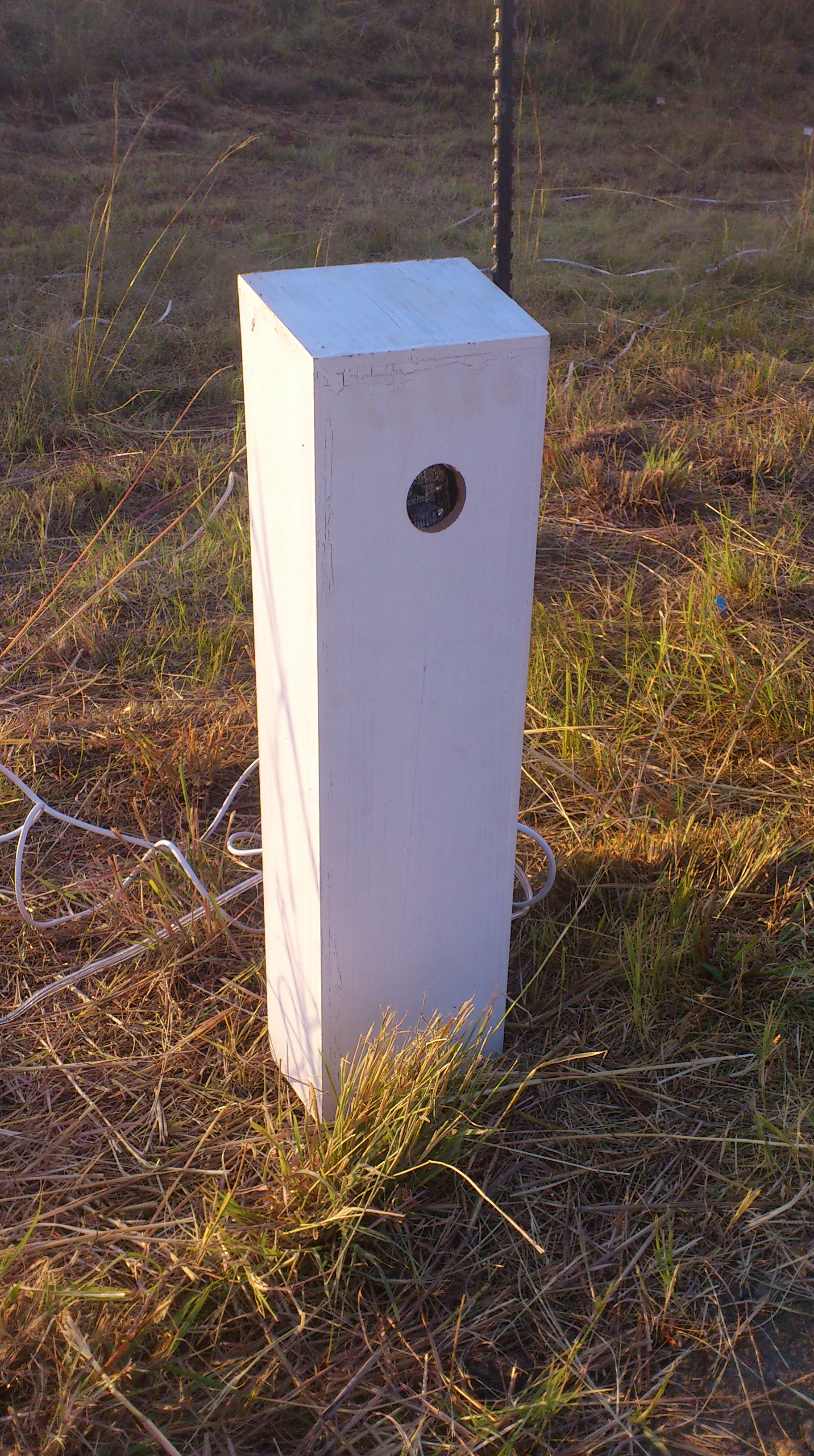

  • Powerful IR emitter array – mounted at at the front of the car pointing to the pavement.
  • Bins popping open with balloons and colour – an IR receiver picks up the car approaching, circuit then sends signals using wires and wireless signals to bins on both sides of the road.  Pin is then pulled on bin lid using solenoid and lid opens up letting out balloons.
  • Cannons firing – an IR receiver picks up the car approaching, circuit then sends signals using wires and wireless signals to cannons air release valves on both sides of the road letting off balls and ribbons.
  • Things lifting – an IR receiver picks up the car, circuits then sends signal to solenoid which pulls pin.  Weight then drops pulling elements attached to a sting into the air.

DSC_0147

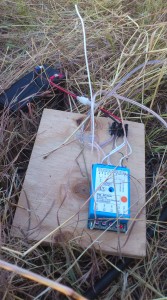

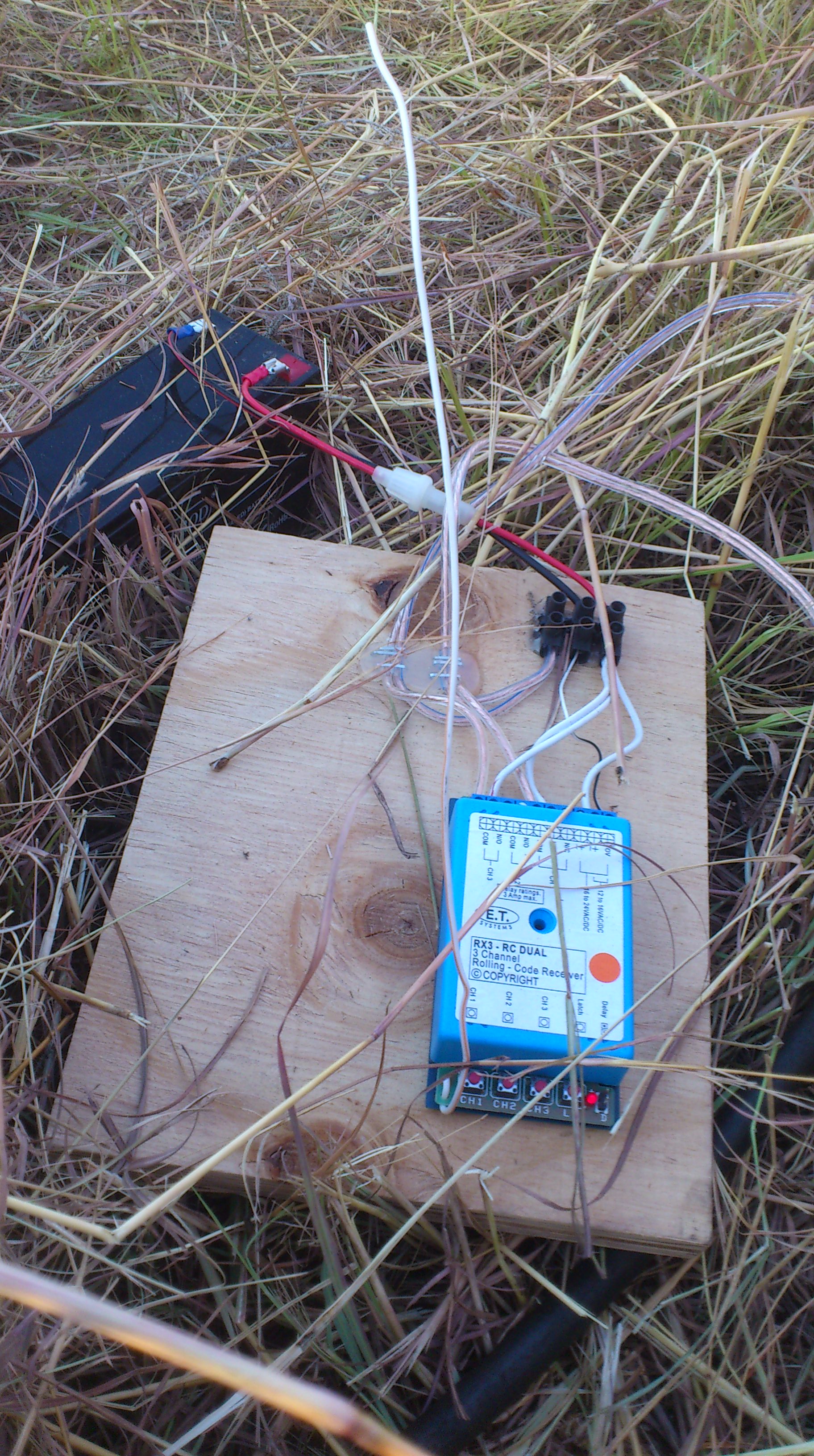

DSC_0165 DSC_0131 DSC_0158

Technologies and skills used: micro-controllers, custom built circuits, IR transmitters  and receivers, wireless transmitters and receivers, solenoids etc.

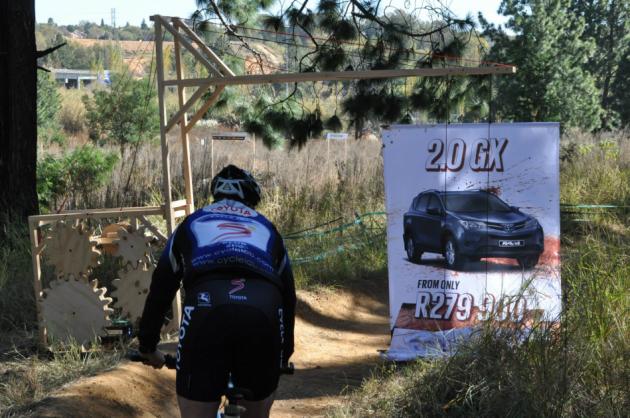

Toyota RAV4 with ThingKing

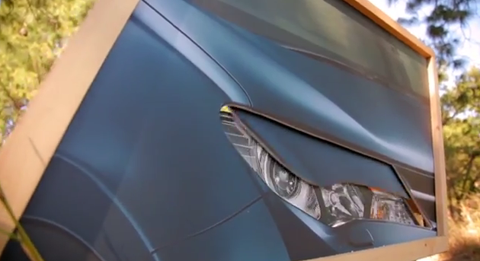

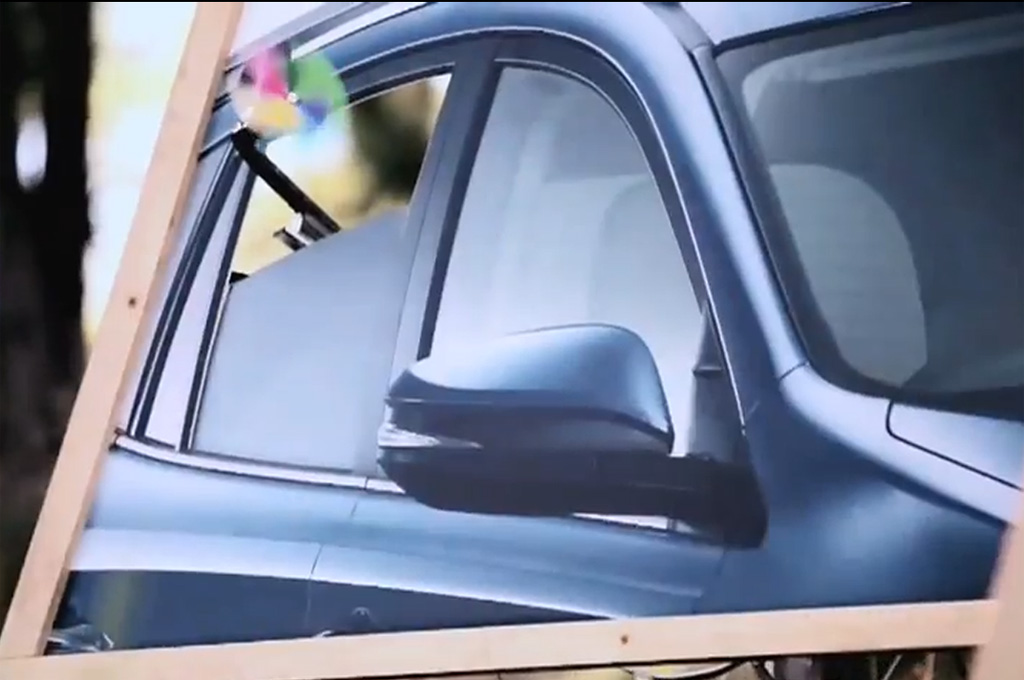

  • The winking eye and The opening window and windmill – when the feature button is pressed a signal is sent, using geared motors, switches and cables the eye lid and window open and close in tracks.

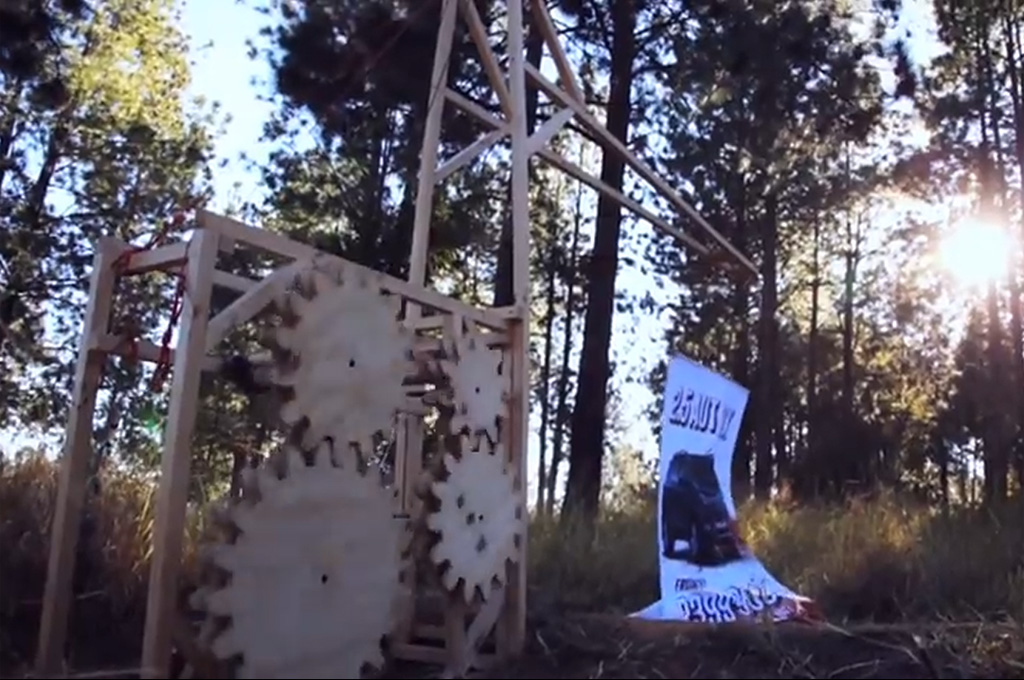

  • The Cogs and Crane – when the feature button is pressed either both or one set of cogs are set into action, this also has the crane lift a banner.

Winking eye Toyota-Rav4-Outdoor-Website-window

Toyota-Rav4-Outdoor-Website-gears rav4 gears

Technologies and skills used: motors, switches, gears, pulleys, cables and tracks etc.

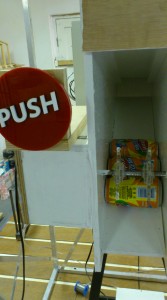

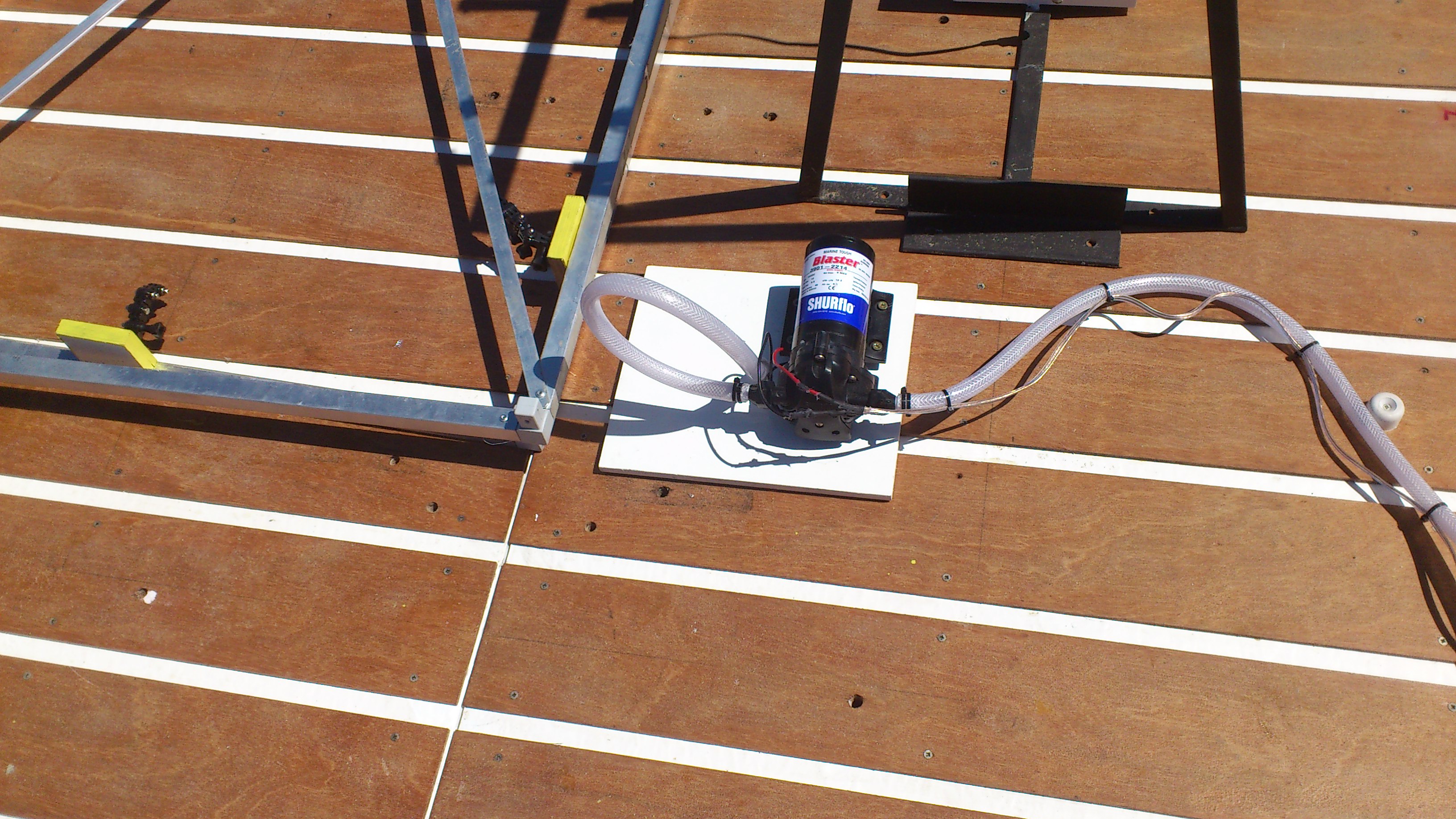

Lipton Floating Vending Machine with ThingKing

  • Swim out to the raft, push a button, water squirts in your face, a GoPro takes several pictures of you getting squirted.  Finally you get an Ice Tea.

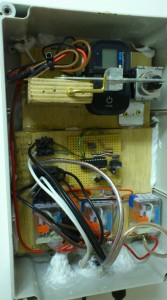

DSC_1252 DSC_1249

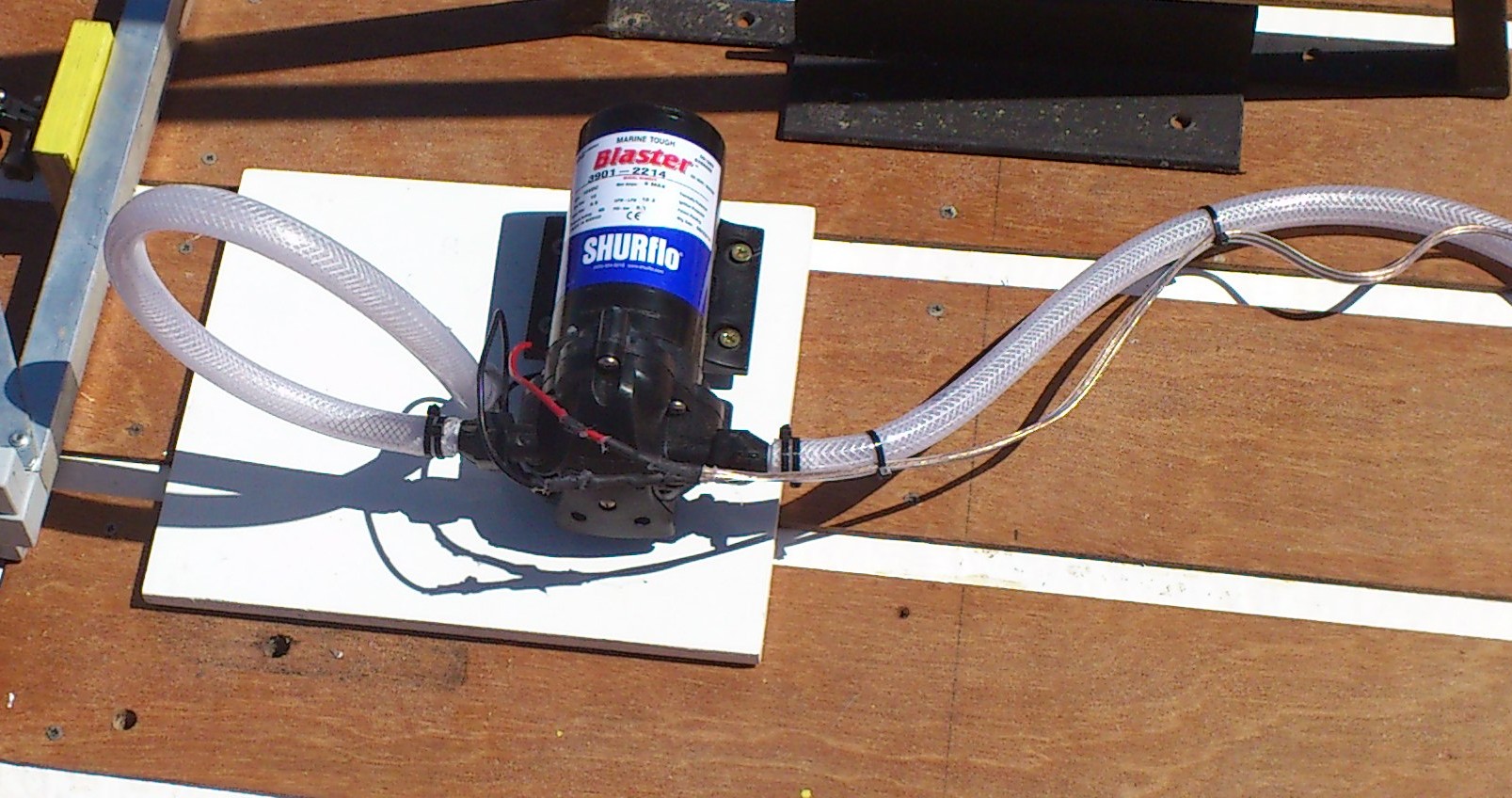

DSC_1266

Technologies and skills used: micro-controllers, custom built circuits, solenoids, GoPros & WiFi remotes, water pumps, buttons, battery power, laser cutting etc.

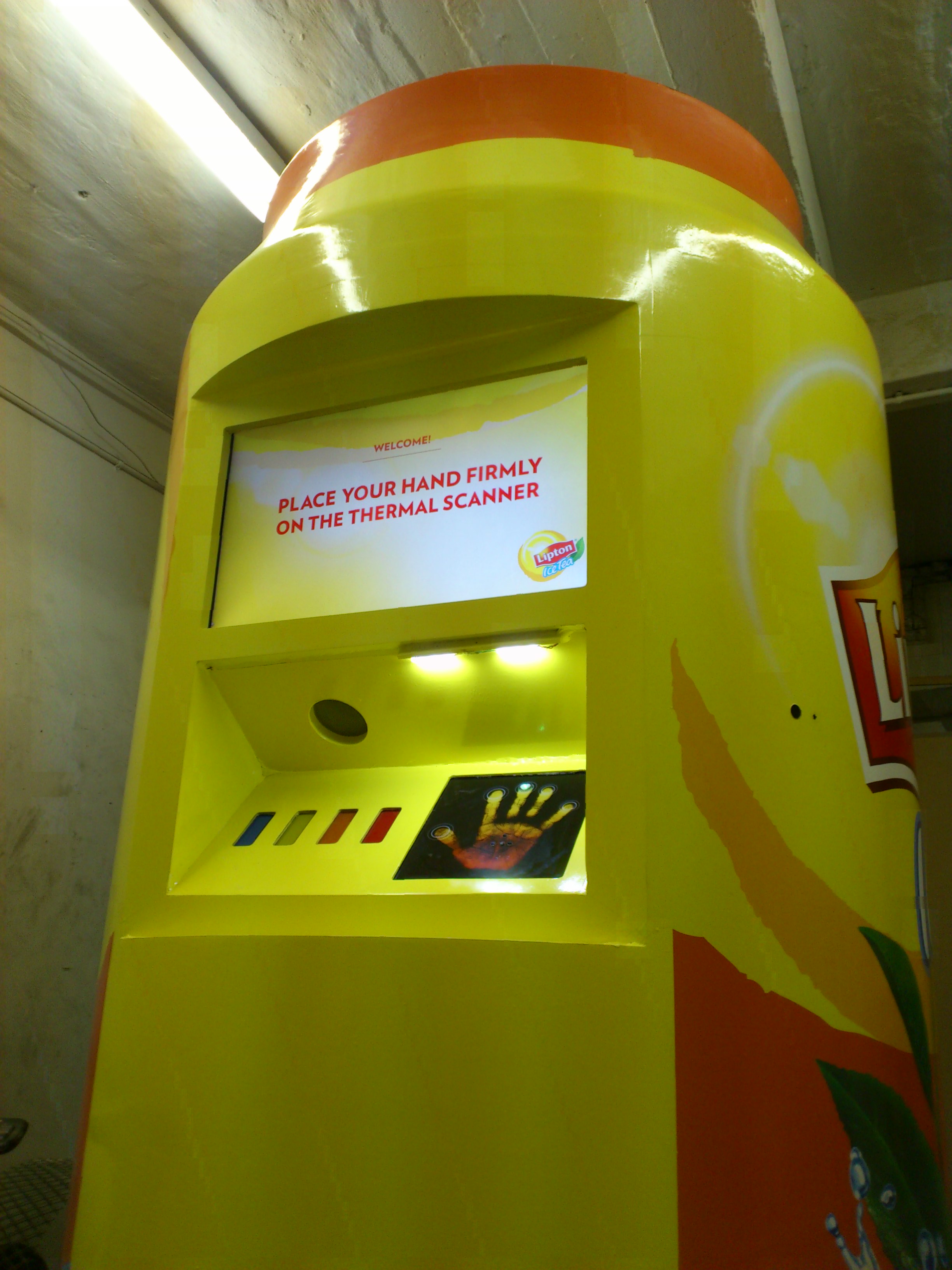

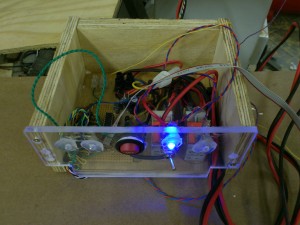

Lipton Tea-mometor with ThingKing

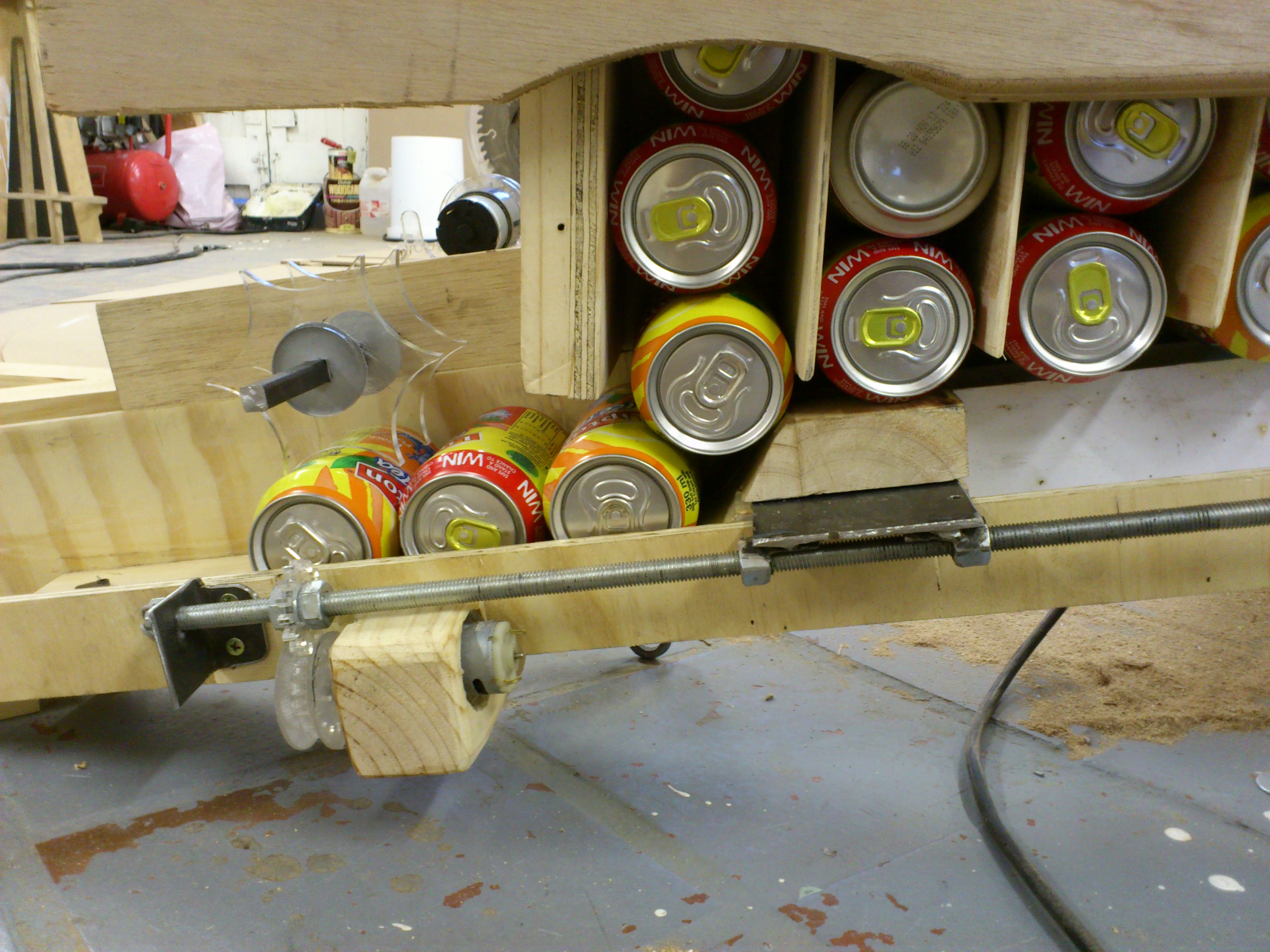

  • Vending machine – receives signal from heart rate monitor, dispenses 1, 2 or 3 drinks, next cans slide down, once a column of cans is empty wedge unit moves back until next row of cans roll into place.

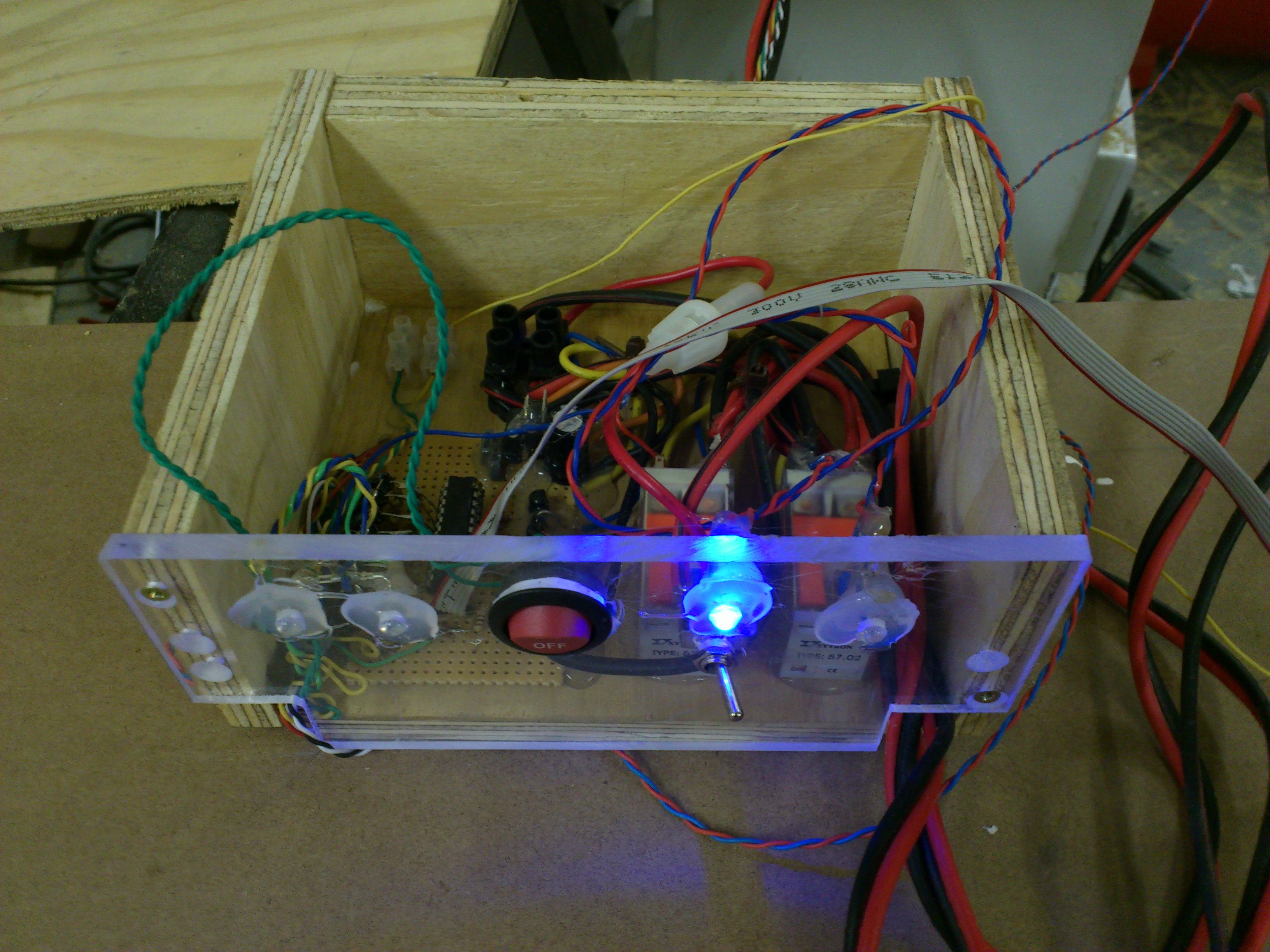

DSC_1399 DSC_1378

DSC_1404

Technologies and skills used: micro-controllers, custom built circuits, geared motors, switches, screw gears, laser cutting, wood and metal work etc.

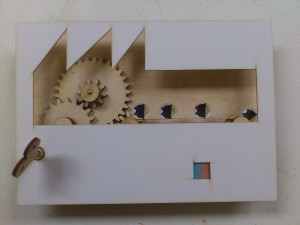

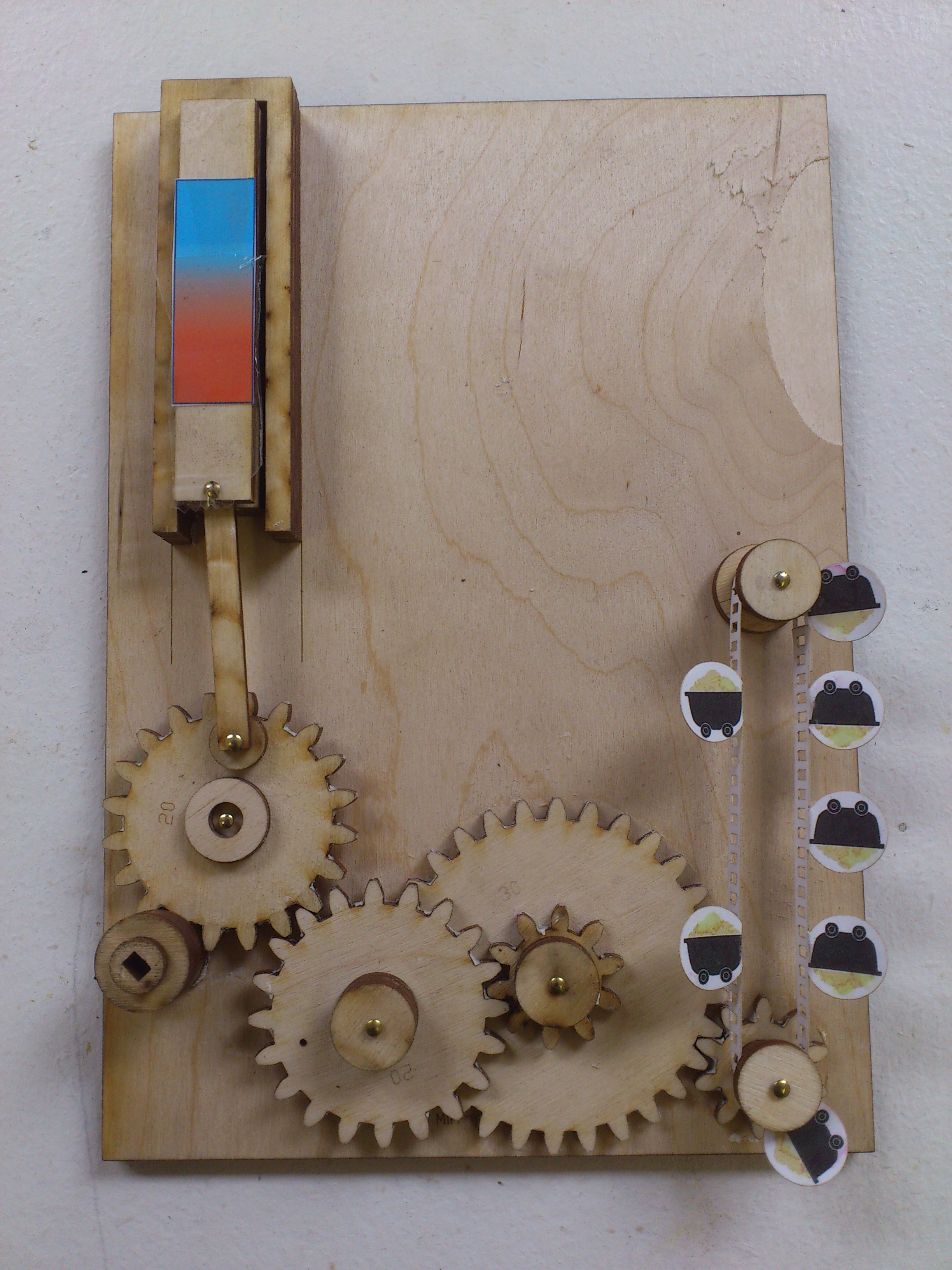

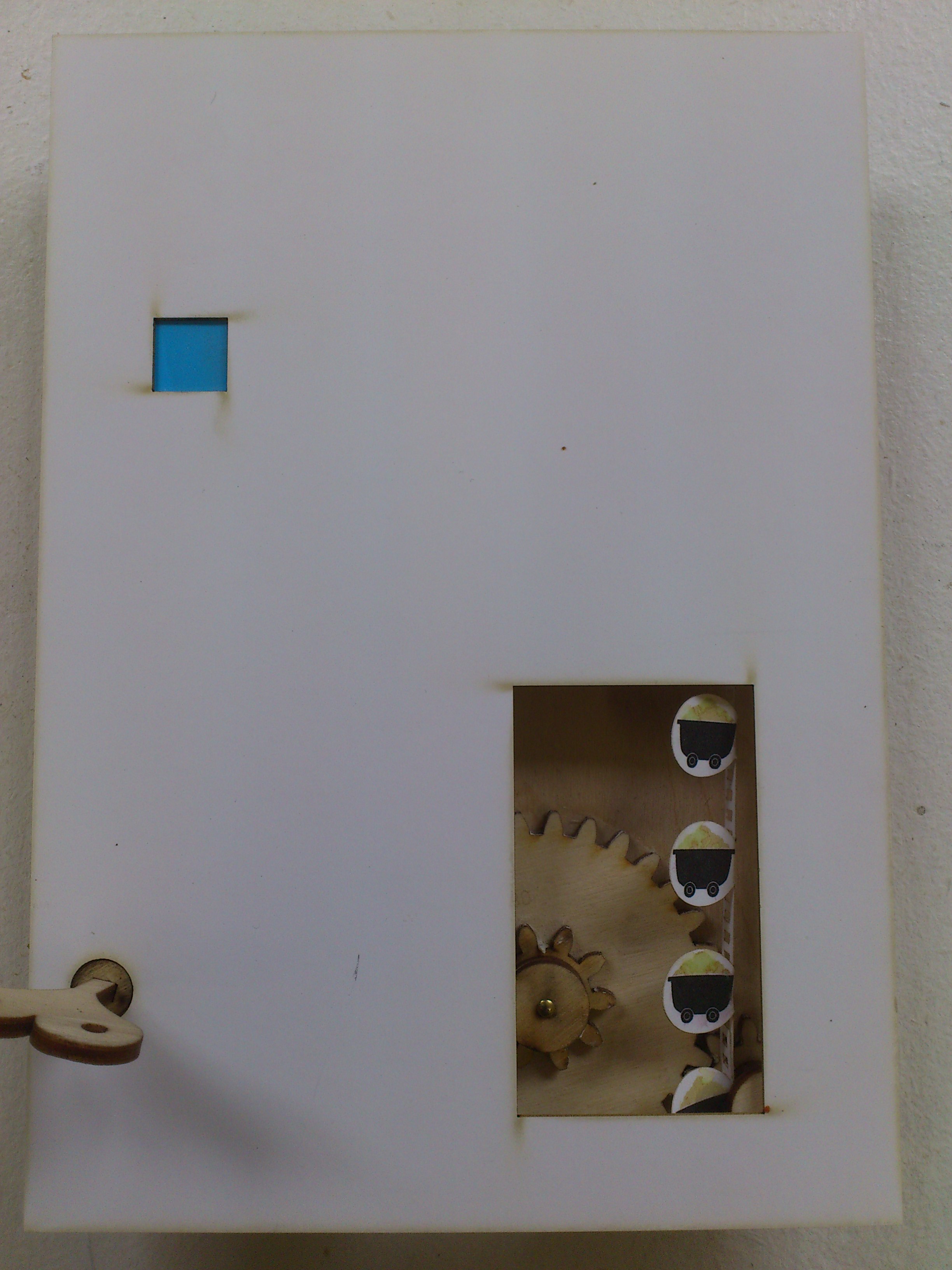

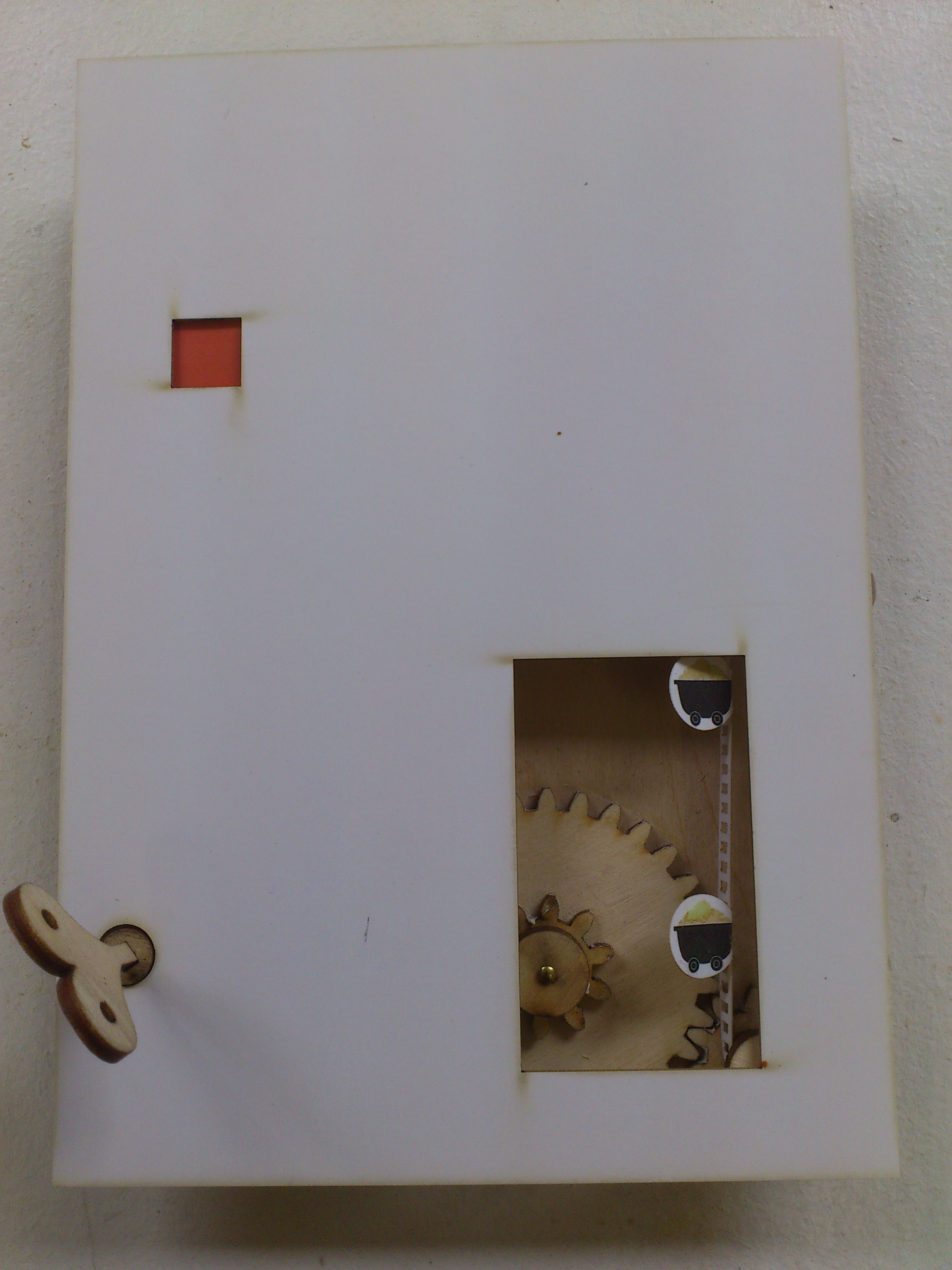

Mechanicard with ThingKing

  • Aggreko mechanicard mailer – was meant to display work productivity in a cold vs hot environments, when it is hot there are less items on the conveyor belt and when it is cold there are more items on the conveyor belt.  The task was to design, prototype and produce 300 + units.  All parts were laser cut out of Birch plywood and paperboard, then assembled using glue and pin nails.

DSC_1686 DSC_1684 DSC_1683

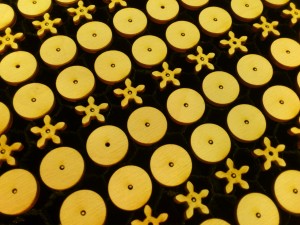

DSC_1681 DSC_1706

Technologies and skills used: CAD software, gears and ratios, laser cutting, Birch ply and paper etc.

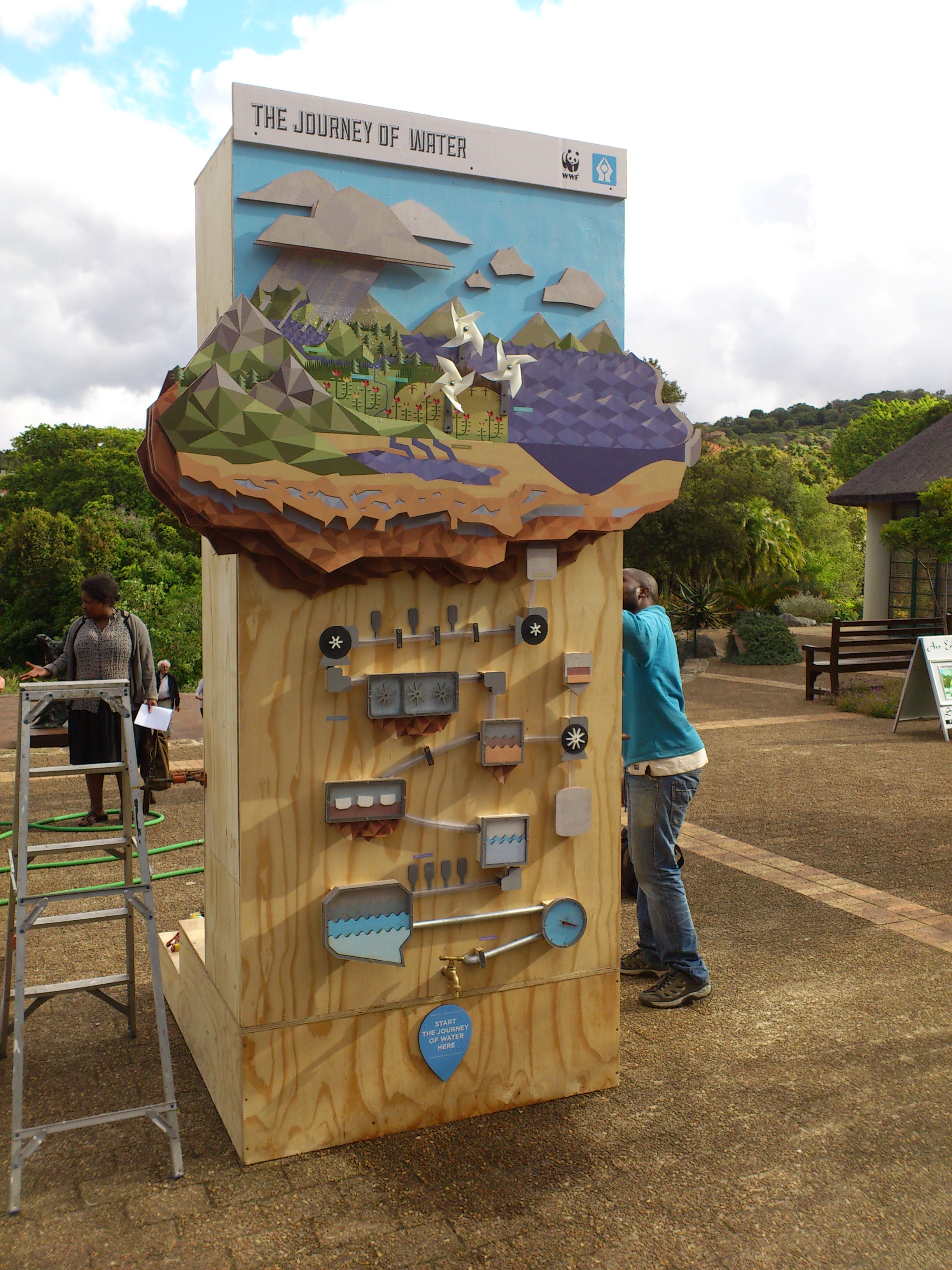

WWF Journey of Water with ThingKing

  • Opening tap does not let out water – instead, magnets in the tap trigger switches which tell circuit if tap is being opened or closed.  If tap is being opened a pump is turned on, this pump pumps water up into the clouds.  This water then rains down though the sequence of elements.  Some elements react to water using delays in circuit. Finally when water reaches the end of the filtration system a stop cock is opened letting water from a drinking water container flow out though the tap.  The rain water is returned back into the rain water container to wait to be pumped back up to the cloud next time the tap is opened.  The system runs on a battery and is solar powered.

DSC_1795

Technologies and skills used: Arduino, custom built circuits, pumps, servos, solar panels, batteries, plumnbing etc.




Mohair Bicycle with ThingKing

  • This bicycle was mounted on a stand with its back wheel in the air.  It had an old 12V gate motor pushing on the back wheel.  When the bicycle was peddled the back wheel would spin the gate motor which would act as a generator.  The power generated was used to charge a battery though a custom built charge / voltage controller.  There was also an amp meter mounted on the bicycle the the person peddling could see how much current they were producing – you could get 10A at a good push which is around 100watts. The battery then powered an electric knitting machine via an inverter.

MOHAIR


Technologies and skills used: metal work, gate motor as generator, micro-controller, LEDs, relays, batteries, 220vac inverter etc.
